Shunzhi Cone Crusher
Cone crusher is a piece of multi-functional crushing equipment, widely used as primary, secondary and tertiary crusher in mining, construction and aggregate industries.
With 100% full automatic operation, Shunzhi cone crusher machines are of high efficiency and high reliability. The high-grade cast steel design promises strength and stability, while the spring-loaded release system promises safe and easy operation.
Cone Crushers For Sale
High performance Shunzhi cone crusher – Cylinder Hydraulic Cone Crusher, Spring Cone Crusher, Compound Cone Crusher, Symons Cone Crusher In Large Stock!
Feeding Size: 0-300mm
*Note: Can Be Customized.
Capacity: 30-500t/h
*Note: Can Be Customized.
Applicable Materials:
Suitable for crushing medium and high hardness materials such as chrome ore, iron ore, basalt and granite.
Applicable Fields:
With wide applications in metallurgy, mining, chemical industry, cement production and more – this medium to fine crushing solution is a well-established staple for industrial operations.
Types of Shunzhi Cone Crushers for Sale
The cone crusher is suitable for secondary crushing and fine crushing of hard rocks, ores, slag and refractory.
Shunzhi has single cylinder hydraulic cone crushers, multi cylinder hydraulic cone crushers, spring cone crushers and compound cone crushers for sale.

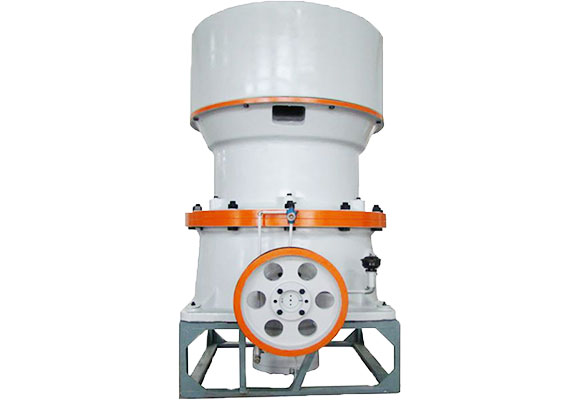

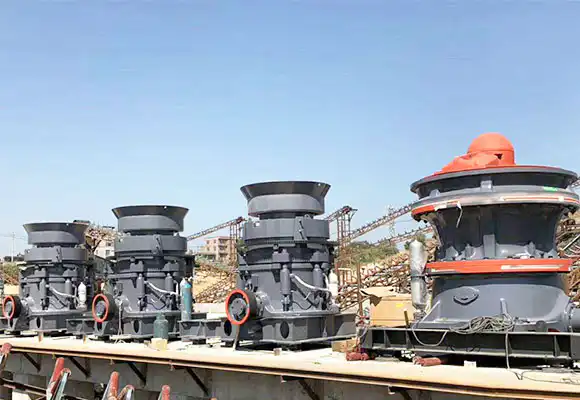

Single Cylinder Hydraulic Cone Crusher
Due to the steep cone, and simple structure, Shunzhi cylinder hydraulic cone crusher has small crushing force.
Small main shaft eccentricity and the long crushing concave means a great improvement in the uniformity of the crushed product, and the production capacity is increased by more than 30%.
The automatic overload protection device can be automatically disconnected when the material enters the crushing chamber, so as to avoid damage to the equipment caused by overloading.
Generally, it is a great choice for medium hardness crushing, fine and ultra fine material crushing.
| Model | SC100S ~ SC315S, SC100 ~ SC750 |
| Maximum feeding size (mm) | 22-38 ~ 4-32 |
| Capacity (t/h) | 85-170 ~ 318-892, 45-135 ~ 394-2181 |

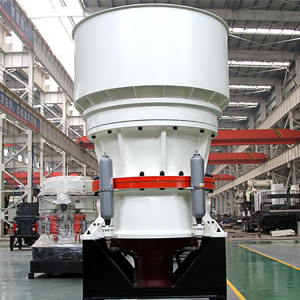

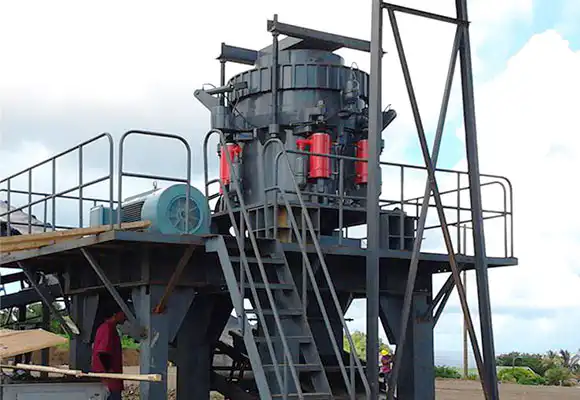

Multi Cylinder Hydraulic Cone Crusher
Shunzhi multi cylinder hydraulic cone crusher adopts the laminated crushing cavity design and the fixed-shaft structure design, and the product produced by it usually has uniform granularity, good particle shape, proper stacking arrangement.
It has a large crushing force that is suitable for crushing hard materials, and suitable for the medium and fine crushing of various ores and rocks.
High swing frequency, slow cone and multi-cylinder hydraulic locking, greatly improve the production capacity and crushing efficiency of the crusher.
The large bevel gear at the bottom of the transmission shaft ensures stable transmission, low noise and long service life.
| Model | HPM200 ~ HPM800 |
| Maximum feeding size (mm) | 42-280 |
| Capacity (t/h) | 40-210 ~ 616-1100 |

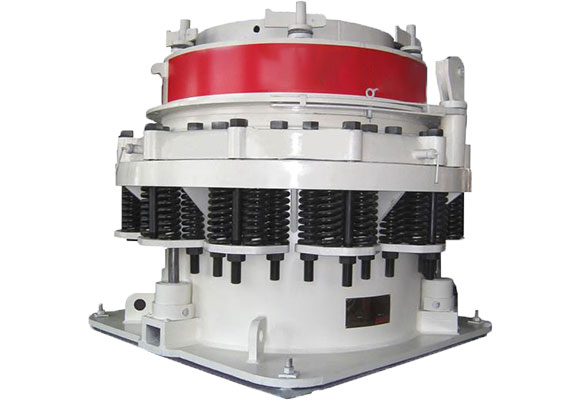

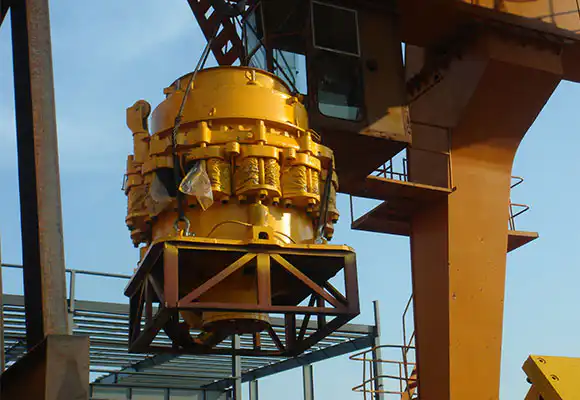

Spring Cone Crusher
Shunzhi spring cone crusher uses international advanced technology to improve equipment performance, optimize structure design and material selection.
Its feed opening is relatively small, so it always acts as the primary crusher.
The spring cone crusher is suitable for all kinds of fine and even ultra fine crushing of hard rocks, ores, slag, iron ore, granite and refractories.
In addition, its continuous rotation of the operated cone body and high productivity make it desirable for metallurgy, building materials, roads, bridges and construction industries.
| Model | PYB-600/75 ~ PYB-2200-350, PYZ-900/70 ~ PYZ-2200/275, PYD-600/40 ~ PYD-2200/130 |
| Feed particle size (mm) | 65-300, 60-230, 35-100 |
| Capacity (t/h) | 40-90 ~ 230-450, 15-60 ~ 160-350 |

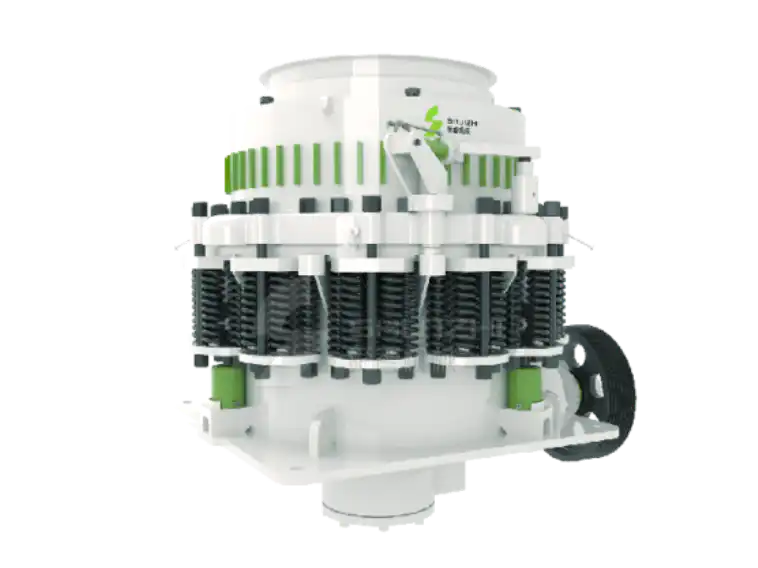

Compound Cone Crusher
Our compound cone crusher is a comprehensive cone crusher that combines the function of spring and hydraulic cylinder cone crusher.
It is made of 4 kinds of crushing chambers to meet the requirements of different feeding and discharging particle sizes.
Overall, the standard type is able to feed large particle size and discharge coarse particle. The short head type has steep cone that is able to feed small sized particle and discharge fine materials.
With the best crushing frequency and eccentric distance, the crushing capacity of our compound cone crusher is higher than that of other types.
| Model | 1306 ~ 1324 |
| Maximum feeding size (mm) | 50-190 |
| Capacity (t/h) | 36-163 ~ 172-349 |

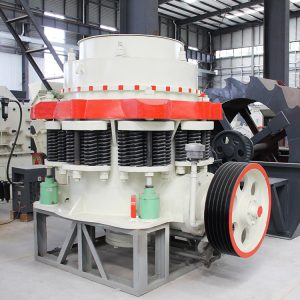

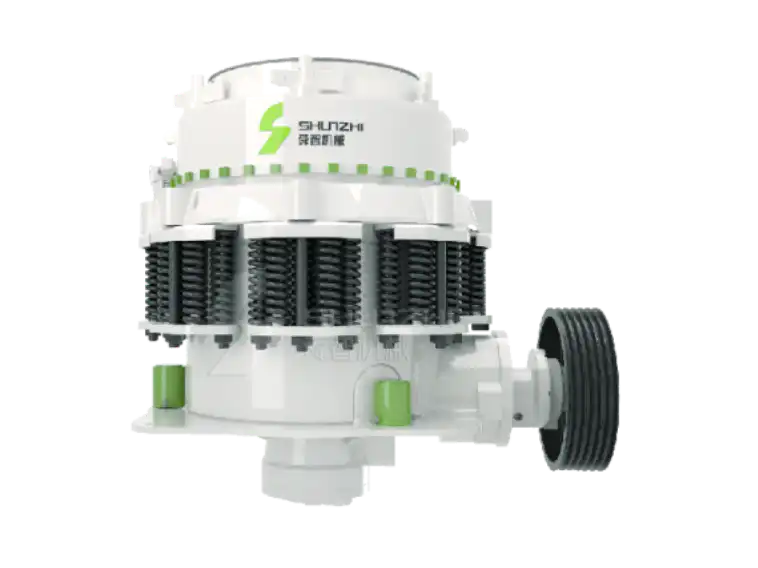

Symons Cone Crusher
The structure of Shunzhi Symons cone crusher is different from the traditional spring cone crusher. In addition to being equipped with a longer parallel belt and shorter crushing chamber, it is also installed with hydraulic cavity clearing device so that this crusher has higher reliability, better performance and longer service life.
It is suitable for medium crushing and fine crushing of various ores and rocks with different hardness, such as iron ore, non-ferrous metal ore, basalt, granite, limestone, sandstone and pebble.
This machine has the advantages of large crushing force, high efficiency, low energy consumption and uniform product size.
| Model | 1306 ~ 1324 |
| Maximum feeding size (mm) | 50-190 |
| Capacity (t/h) | 36-163 ~ 172-349 |

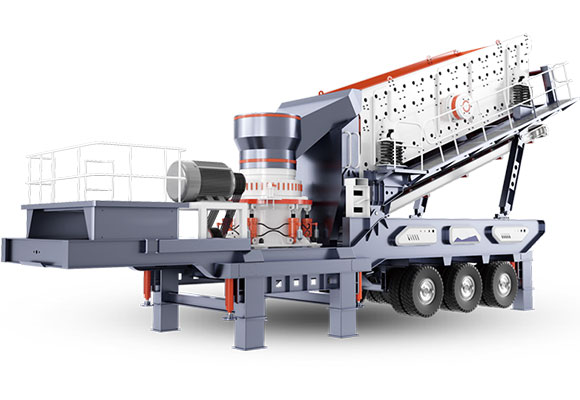

Mobile Cone Crusher
Shunzhi mobile cone crusher comes with wheel type and crawler type. It has great flexibility to adapt to any terrain to finish its job.
The crushed material is cubic in shape, and the discharge port can be adjusted freely. The hydraulic system of mobile cone crusher ensures its stable operation and convenient maintenance.
The mobile cone crusher is a piece of ideal equipment for large-scale stone crushing factory and mining industry.
| Model | SZYY300 ~ SZYY750 |
| Maximum feeding (mm) | 300 ~ 700 |
| Capacity (t/h) | 80-280 ~ 104-400 |
Our Advantages
Shunzhi cone crusher guarantees high quality and good performance. It offers beautiful pellets and fine sand for worldwide customers.
Shunzhi cone crushers are cast in high-strength alloy steel with compact structure. The mantle and concave are lined with high manganese steel for long life and good wear resistance.
+47%
Long Lifespan Enhancement
Our cone crushers are equipped with powerful motor. When its mantle rotates at high speed, it creates large centrifugal force, making the raw material into fine particles quickly.
30%
Operation Cost Reduction
Shunzhi cone crusher machines feature a unique combination of crusher speed, throw, and cavity, which provides higher capacity, lower consumption and superior product quality.
16%
Production Capacity Increasing
Compared with a traditional cone crusher, the unique crushing chamber of Shunzhi cone crushers provide beautiful particle shape and high production capacity.
21%
Particle Shape Improvement

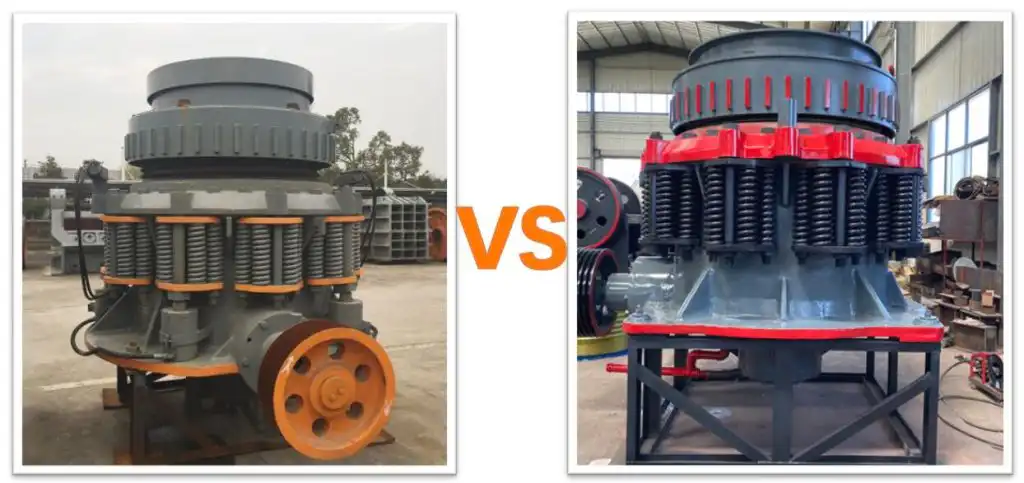

Why Choose Shunzhi Cone Crushers?
Traditional Cone Crushers
5-50mm Minimum Discharge Opening Size.
170mm Max Feeding Size.
30-1814 t/h Capacity.
40-370 mm Feeding Port Size.
Shunzhi Cone Crushers
3-60mm Minimum Discharge Opening Size.
280mm Max Feeding Size.
15 – 2181 t/h Capacity.
40-560 mm Feeding Port Size.
Shunzhi Cone Crusher Price List
| Types | Price Range |
| Single Cylinder Hydraulic Cone Crusher | $5,000 – $30,000 |
| Multi Cylinder Hydraulic Cone Crusher | $8,000 – $50,000 |
| Spring Cone Crusher | $5,000 – $30,000 |
| Compound Cone Crusher/Symons Cone Crusher | $6,000 – $100,000 |
The above price range is for reference only. The specific price shall be based on the actual material, equipment and quantity of products.
The Shunzhi cone crusher also has a mobile wheel type and mobile crawler type for sale. If you go for more portability in transport, then you can choose a mobile cone crusher.
Generally, the price varies according to the type, capacity, etc. If you are looking for a more accurate quotation, you can tell us your specific needs and we will provide you with a personalized cone crusher price list.
How Shunzhi Cone Crusher Improves Your Business?
Shunzhi cone crusher is a high-quality, efficient machine that offers many advantages over traditional cone crushers. Its strong and durable design, combined with its full auto capabilities and easy maintenance make it a superior choice for those looking for a reliable and productive cone crusher.
High Crushing Ratio
Shunzhi cone crusher is able to process raw materials to relatively fine particles, and the process is simple.
The connection of higher turning speed and stroke makes the rated power and passing capacity improved greatly and the crushing ratio and capacity increased.
Strong and Durable Design
Shunzhi cone crusher is built with a strong and durable body, cast in high-strength alloy steel that can withstand high loads. The body is designed to resist wear and tear, and it is also resistant to rust and corrosion.
Our bearings are also designed to last longer, with a specially treated surface that resists wear and tear so as to enlarge lifespan under max load.
The cone crusher is also equipped with an advanced dust seal that protects it from contamination. This seal is made of a high-quality material, so it can keep the dust and other particles out while allowing the cone crusher to operate smoothly.
High Efficiency
The cone crusher is designed to work with a large feed opening and a high-efficiency motor. The combination of these two features enables the Shunzhi cone crusher to work more efficiently and effectively.
Full Control of the Finished Products
Because of the hydraulic motors, Shunzhi cone crusher can disassemble the frame and adjust the crushing cavity. This allows for full control of the finished product’s shape.
Full Auto Design
Shunzhi cone crusher can be completely controlled by our PLC system. This means that the machine can be started and stopped automatically, as well as adjusted to produce the desired shape of product.
Quiet Operation
Shunzhi cone crusher is designed with spiral bevel gears and a helical gear drive. This design is much quieter than traditional cone crushers, making for a more pleasant work environment.
Enhanced Safety
Shunzhi cone crusher is equipped with an alarm system that alerts the operator when harmful conditions occur. This helps to protect the machine and its components from damage.
Besides, dual-acting cylinders allow theupper assembly to be lifted, making it possible and safe to remove objects that are stuck inside the chamber.
Easy Maintenance
Shunzhi cone crusher is designed for easy maintenance. All of the machine’s parts can be easily accessed for cleaning and replacement.
With its strong and durable design, full auto capabilities, and easy maintenance, the Shunzhi cone crusher offers many advantages over traditional cone crushers. If you are looking for a reliable and productive cone crusher, then the Shunzhi cone crusher is a perfect choice. Get a free quote now if you need one!
Global Cases
Cone Crusher Sent to Morocco
A customer from Morocco bought a cone crushing plant with a capacity of 250 tons per hour. The customer’s raw material is granite, and the feeding size is 150-200 mm. The required finished products are 5-15 mm and 15-30 mm.
Cone Crusher Works in Mexico
A Mexican customer contacted our company and said he wanted to buy a cone crusher with the capacity of 445 tons per hour. Now, Our HPM300 multi cylinder hydraulic cone crusher has been put into production, and the output is very good.
Install Cone Crusher in Congo
Our cone crushing machine has been well received by local users. The customers who use it are very satisfied with the machine’s performance and the finished products. They all say that our cone crusher is very good for crushing hard materials.

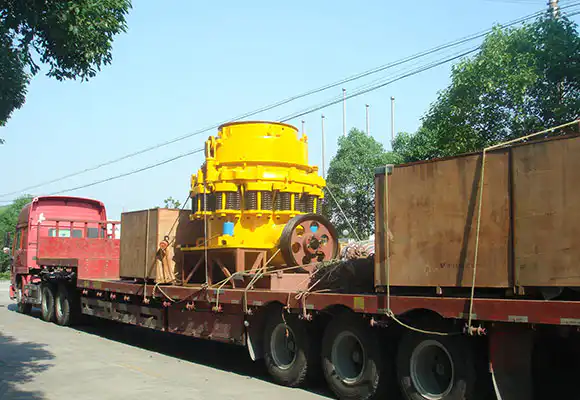

Cone Crusher Sent to Egypt
Our PSG 1300 compound cone crusher sent to Egypt several months ago and has been installed successfully and started working yesterday. The customer is very satisfied with the machine’s performance and the finished particle size.

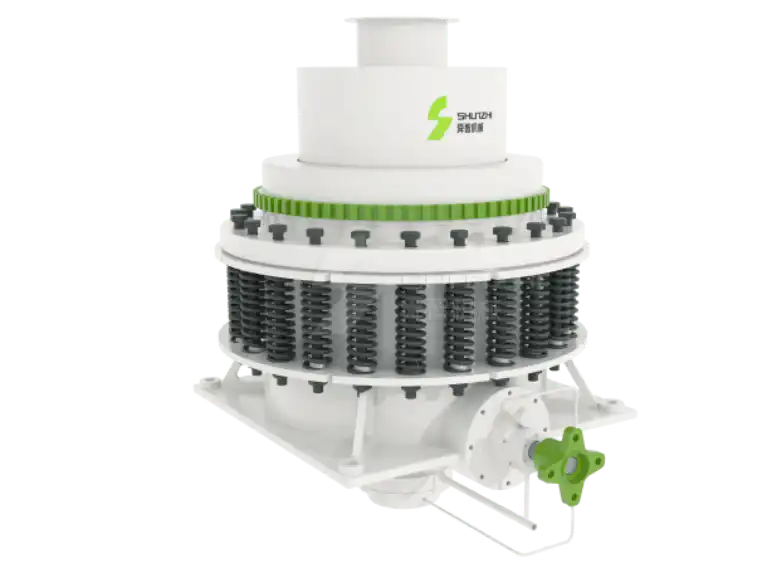

Spring Cone Crusher Specifications
| Model | Crushing cone diameter (mm) | Feeding port size (mm) | Feed particle size (mm) | Adjustment range of ore discharge mouth (mm) | Motor power (kw) | Capacity๏ผt/h๏ผ |
| PYB-600/75 | 600 | 75 | 65 | 12-25 | 30 | 40 |
| PYB-900/135 | 900 | 135 | 115 | 15-50 | 55 | 50-90 |
| PYB-1200/170 | 1200 | 170 | 145 | 20-50 | 110 | 110-168 |
| PYB-1750/250 | 1750 | 250 | 215 | 25-60 | 155 | 280-480 |
| PYB-2100/350 | 2100 | 350 | 300 | 30-60 | 280 /210 | 500-800 |
| PYB-2200-350 | 2200 | 350 | 300 | 30-60 | 280 | 500-1000 |
| PYZ-900/70 | 900 | 70 | 60 | 5-20 | 55 | 20-65 |
| PYZ-1200/115 | 1200 | 115 | 100 | 8-25 | 110 | 42-135 |
| PYZ-1750/215 | 1750 | 215 | 180 | 10-30 | 155 | 115-320 |
| PYZ-2200/275 | 2200 | 275 | 230 | 10-30 | 280 | 200-580 |
| PYD-600/40 | 600 | 40 | 35 | 3-13 | 30 | 12-23 |
| PYD-900/50 | 900 | 50 | 40 | 3-13 | 55 | 15-50 |
| PYD-1200/60 | 1200 | 60 | 50 | 3-15 | 110 | 18-105 |
| PYD-1750/100 | 1750 | 100 | 85 | 5-15 | 155 | 75-230 |
| PYD-2200/130 | 2200 | 130 | 100 | 5-15 | 280 | 125-350 |
What Do Customers Talk About Us?
The single cylinder hydraulic cone crusher we bought from Shunzhi Machinery is a very good hydraulic cone crusher. The equipment has been running stably for two months and the final product particle size meets our requirements. The finished partical is great in the use of our projects like highway and railway.
โ Ridzuan Yusuf
We are satisfied with the Shunzhi compound cone crusher. The machine is stable in operation, the output is good and the particle size is just what we and our clients want. After-sales service is also in place and the staff are very professional. Highly recommend it! We will continue to cooperate with Shunzhi.
โ Roshan Yaseen
