Shunzhi Construction Crusher Plant
With large 50% crushing ratios and 32% cost savings, Shunzhi construction crusher plant is perfect for construction waste recycling such as concrete, waste bricks, stones or help you crush the raw materials into the optimal size.
Our construction crusher plant capacities can be customized from 5 to 1000 tons per hour, you can get a customized plan for your specific application. Shunzhi construction crusher offers wide options ranging from jaw crusher, VIS crusher, cone crusher, etc.
Construction Crusher Plant For Sale
Large capacity Shunzhi construction crusher plant – 20TPH, 50TPH, 100TPH, 200TPH, 500TPH In Large Stock!
Feeding Size: 0-300mm
*Note: Can Be Customized.
Capacity: 5-1000t/h
*Note: Can Be Customized.
Applicable Construction Crusher Types
Applicable Fields:
Widely used in construction waste recycling and construction raw material resizing.
More Efficient.
The plants use advanced grinding systems and sensors to optimize their operations and lower energy consumption.
Less Waste.
The construction crusher plant creates very little waste since most materials are recycled into new products or reused in other projects. .
More Safe In Use.
Modern construction crushing plants also come with enhanced safety features that help protect your workers from potential dangers when operating the machines.
More Precise.
The machines used in the process can be programmed to produce materials with accurate measurements and precise textures.
Portable Construction Crusher, Or Stationary Crusher Plant?

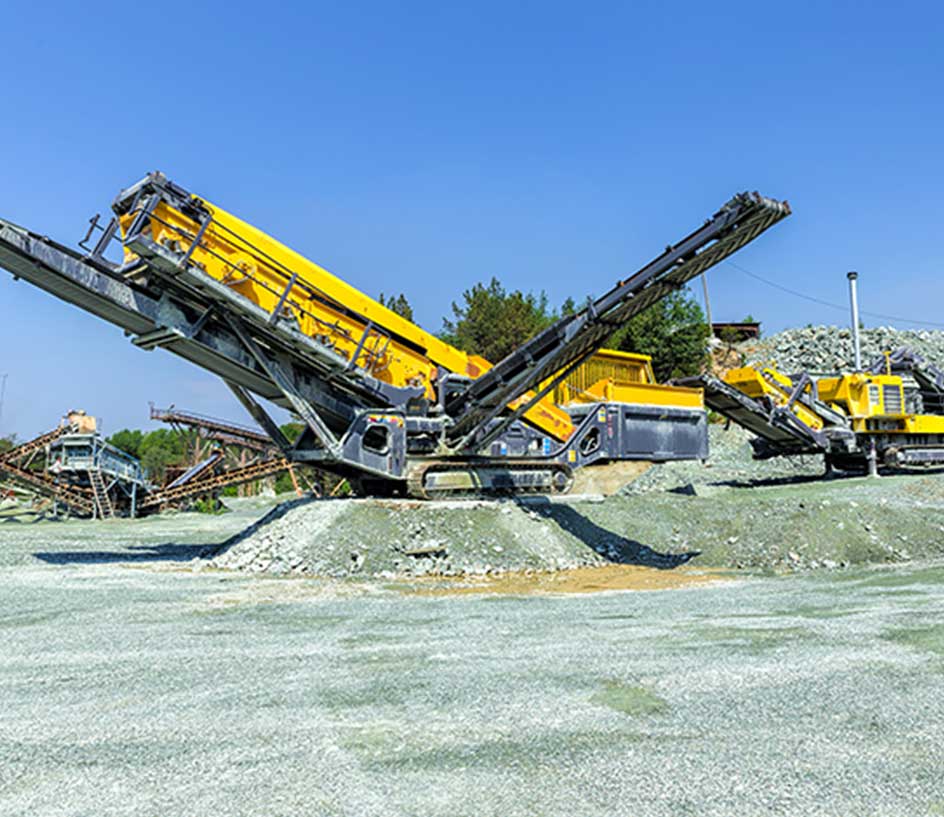

Portable Constrcution Crushing Plant
It allows for flexibility and ease of use, as the equipment can be moved around to different locations or even relocated entirely if needed.
The portability of mobile construction crushing plants makes them an ideal solution for smaller operations that may not have the space or resources for a larger plant.
More suitable for lower budget, for they costs less than stationary type.
More easily maneuvered over uneven terrain or dirt roads. This makes it ideal for use in quarries or other rugged areas.
Fixed Construction Crushing Plant
Stationary/fixed construction crushing plants are typically larger in size and require more planning for set-up and transport between sites.
They also tend to be more expensive due to their higher capacity, making them better suited for larger operations.
Does not require tires or tracks to move around.
Offers greater consistency in production as the output size and type is predetermined.
Our Advantages
Shunzhi construction crusher plant has a complete after-sales service system for customers, providing customers with technical advice, installation guidance, and maintenance instructions. We are committed to providing our customers with quality products and services. Welcome to visit our company for negotiation.
50% large crushing ratio of our construction crusher plant is able to produce high-quality materials for large-scale construction projects. We also use advanced technology to reduce noise and dust pollution, meeting the standards set by local environmental protection agencies.
50%
CRUSHING RATIO
Our construction crusher plant is designed to produce high-quality and consistent results with minimal manual operation, and thanks to our sophisticated control systems, according to our customers feedback, our plants prove to reduce 32% operation costs and labor costs.
-32%
OPERATION COSTS
Our construction crusher plant is widely used for crushing and screening materials in construction. We provide complete and tailor-made solutions for construction purposes or recycling crushing works in huge bulk quantities for nearly any project, no matter small or large ones.
98%
APPLICATIONS
We can say that all of our construction crusher plant has 99% working performance improvement thanks to our modern technology and the high-quality components that we use to create our machines, which makes our crushing products stand out and superior to other competitors.
99%
WORK PERFORMANCE
Shunzhi Construction Crusher Plant Price List
| Types | Price Range |
| 5tph Construction Crushing Plant Price | $6,700 – $7,800 |
| 20tph Construction Crushing Plant Price | $9,500 – $11,000 |
| 50tph Construction Crushing Plant Price | $58,000 – $70,000 |
| 80tph Construction Crushing Plant Price | $65,000 – $76,000 |
| 100tph Construction Crushing Plant Price | $40,000 – $50,000 |
| 150tph Construction Crushing Plant Price | $105,000 – $220,000 |
| 200tph Construction Crushing Plant Price | $250,000 – $230,000 |
| 300tph Construction Crushing Plant Price | $170,000 – $182,000 |
| 600tph Construction Crushing Plant Price | $1,150,000 – $1,30,000 |
| 1000tph Construction Crushing Plant Price | $850,000 – $950,000 |
The construction crushing plant price is determined by the feeding capacity, machine types, and other equipment configurations. The capacity of the plant is a major factor that determines the price. The higher the capacity, the more expensive the cost will be.
The machine types also affect the price of construction crushing plants. Different types of machines used in different stages of the production lines will result in varying costs. Moreover, some other factors such as electricity consumption, labor costs, and other related expenses also play an important role in determining the overall cost of the construction crushing plant.
Additionally, choosing to install additional equipment such as dust removers, screens or conveyors can further increase the total cost.
Therefore, if you want to know the exact price of construction crusher plant, please contact us by clicking the button below, tell us your requirement and we will offer customized solutions and quote for you.
Types of Construction Crushing Plant for Sale
Shunzhi construction crusher plant has high safety standards and is equipped with safety features to protect the workers against any potential hazards. The low noise emissions ensure that the plant can be used in urban areas without causing any disruption. Additionally, it is easy to transport and move around on construction sites.
There are various capacities of construction crusher plants for sale and the plants are highly customisable and can be tailored according to the individual requirements of the customer.
Check Your Needed Construction Production Machines By Clicking the Capacities Below:
10-20 TPH / 30-50 TPH / 100-120 TPH / 150 TPH / 200 TPH / 250-300 TPH / 500-600 TPH / 1000 TPH
Small (10-20 TPH) Construction Crusher Plant
Capacity: 10 TPH – 20 TPH
Estimated Price Range: $6,700 – $7,800
| Raw material hardness | soft |
| Feeding size | <200mm |
| Type of production line | Stationary Type |
| Floor area | 2700 sq ft |
| Types of finished products | 1 |
| Finished product specifications | 0-24mm |
Components of 10-20 TPH Small Construction Crusher Machines
The 10-20 tph small construction crushing plant includes a vibrating feeder, a primary jaw crusher and a vibrating screen.
The small construction crusher plant is often used for medium-sized crushing. If you have a tight budget, a primary jaw crusher machine (PE250*400) is able to reduce the large size of raw materials into manageable sizes.
GZD750x2500 Vibrating Feeder
| Model | GZD750x2500 |
| Feeding Chute Size (mm) | 750×2500 |
| Max Feeding Size (mm) | 300 |
| Capacity (t/h) | 50-80 |
| Motor Power (kW) | 3 |
| Weight (kg) | 1590 |
| Overall Dimension (mm) | 2580x1100x1400 |
PE250*400 Jaw Crusher
| Model | PE250*400 |
| Feeding Opening (mm) | 250×400 |
| Max Feeding Size (mm) | 210 |
| Adjusting Rage of Discharge (mm) | 20-60 |
| Motor Power (kW) | 6P 15 |
| Weight (t) | 2.8 |
| Processing Capacity (t/h) | 5-21 |
JC231 Vibrating Screen
| Model | JC231 |
| Feed Opening Size (mm) | 510×800 |
| Discharge Range (mm) | 40-150 |
| Capacity (t/h) | 50-250 |
| Motor Power (kW) | 55-75 |
| Weight (kg) | 9052 |
Parameters of 10-20 TPH Construction Production Line
| Model | Feeding Chute Size(mm) | Max Feeding Size(mm) | Capacity(t/h) | Motor Power(kW) | Weight(kg) | Overall Dimension(mm) |
| GZD750x2500 Vibrating Feeder | 750×2500 | 300 | 50-80 | 3 | 1590 | 2580x1100x1400 |
| PE250x400 Jaw Crusher | 250×400 | 210 | 5-21 | 6P 15 | 280 | / |
| JC231 Vibrating Screen | 510×800 | / | 50-250 | 55-75 | 9052 | / |
30-50 TPH Construction Crusher Plant
Capacity: 30TPH – 50 TPH
Estimated Price Range: $58,000 – $70,000
| Raw material hardness | Hard |
| Feeding size | โค400mm |
| Type of production line | Stationary Type |
| Floor area | 3500 sq. ft. |
| Types of finished products | 3 |
| Finished product specifications | 0-5, 5-40, 40-70 mm |
Components of 30-50 TPH Construction Crusher Plant
Shunzhi 30-50 tph construction crushing plant includes best price vibrating feeder, a jaw crusher, an impact crusher machine and a vibrating screen.
This plant is suitable for processing hard materials like ore. The primary jaw crusher reduces the material size to be fed into the impact crusher machine. The impact crusher crushes the material with its high-speed rotating hammers, and then the material is sent to the vibrating screen, which separates it into different sizes.
GZD750*2500 Vibrating Feeder
| Model | GZD750x2500 |
| Feeding Chute Size (mm) | 750×2500 |
| Max Feeding Size (mm) | 300 |
| Capacity (t/h) | 50-80 |
| Motor Power (kW) | 3 |
| Weight (kg) | 1590 |
| Overall Dimension (mm) | 2580x1100x1400 |
PE400*600 Jaw Crusher
| Model | PE400*600 |
| Feeding Chute Size (mm) | 400×600 |
| Max Feeding Size (mm) | 340 |
| Capacity (t/h) | 16-64 |
| Motor Power (kW) | 6P 30 |
| Weight (kg) | 1200 |
| Adjusting Range of Discharge (mm) | 40-100 |
PF1010 Impact Crusher
| Model | PF1010 |
| Feeding Chute Size (mm) | 1000×1050 |
| Max Feeding Size (mm) | 350 |
| Capacity (t/h) | 50-90 |
| Motor Power (kW) | 4P 45-55 |
| Weight (kg) | 1500 |
| Overall Dimension (mm) | 2370x1700x2390 |
JC231 Vibrating Screen
| Model | JC231 |
| Feed Opening Size (mm) | 510×800 |
| Discharge Range (mm) | 40-150 |
| Capacity (t/h) | 50-250 |
| Motor Power (kW) | 55-75 |
| Weight (kg) | 9052 |
Parameters of 30-50 TPH Construction Production Line
| Model | Feeding Chute Size(mm) | Max Feeding Size(mm) | Capacity(t/h) | Motor Power(kW) | Weight(kg) | Overall Dimension(mm) |
| GZD750x2500 Vibrating Feeder | 750×2500 | 300 | 50-80 | 3 | 1590 | 2580x1100x1400 |
| PE400*600 Jaw Crusher | 400×600 | 340 | 16-64 | 6P 30 | 700 | / |
| PF1010 Impact Crusher | 400*1080 | 350 | 50-90 | 4P 45-55 | 1500 | 2370x1700x2390 |
| JC231 Vibrating Screen | 510×800 | / | 50-250 | 55-75 | 9052 | / |
100-120 TPH Construction Crusher Plant
Capacity: 100TPH -120TPH
Estimated Price Range: $40,000 – $50,000
| Raw material hardness | Soft |
| Feeding size | โค600mm |
| Type of production line | Stationary Type |
| Floor area | 5000 sq. ft. |
| Types of finished products | 2 |
| Finished product specifications | 0-5, 5-10 mm |
Components of 100-120 TPH Construction Crusher Plant
Shunzhi 100-120 tph construction crushing plant consists of a vibrating feeder, a heavy hammer crusher and a vibrating screen.
After feeding your raw materials, the heavy hammer crusher crushes the material with a powerful combination of hammer and anvil. The crushed materials are then transported to a vibrating screen where they are separated into different sizes of finished materials.
GZD850x3000 Vibrating Feeder
| Model | GZD850x3000 |
| Feeding Chute Size (mm) | 850×3000 |
| Max Feeding Size (mm) | 400 |
| Capacity (t/h) | 80-120 |
| Motor Power (kW) | 7.5 |
| Weight (kg) | 3895 |
| Overall Dimension (mm) | 3110x1800x1600 |
PCZ1308 Heavy Hammer Crusher
| Model | PCZ1308 |
| Feeding Chute Size (mm) | 870×780 |
| Max Feeding Size (mm) | 380 |
| Capacity (t/h) | 60-160 |
| Motor Power (kW) | 132 |
| Rotor Diameter*length (kg) | 1530×790 |
| Overall Dimension (mm) | 2880x2130x2390 |
JC340 Vibrating Screen
| Model | JC340 |
| Feeding Chute Size (mm) | 600×1020 |
| Discharge Range (mm) | 60-175 |
| Capacity (t/h) | 85-300 |
| Motor Power (kW) | 75-90 |
| Weight (kg) | 16460 |
Parameters of 100-120 TPH Construction Production Line
| Model | Feeding Chute Size (mm) | Max Feeding Size (mm) | Capacity (t/h) | Motor Power (kW) | Weight (kg) | Overall Dimension (mm) |
| GZD850x3000 Vibrating Screen | 850×3000 | 400 | 80-120 | 7.5 | 3895 | 3110x1800x1600 |
| PCZ1308 Heavy Hammer Crusher | 870×780 | 380 | 60-160 | 132 | / | 2880x2130x2390 |
| JC340 Vibrating Screen | 600×1020 | / | 85-300 | 75-90 | 16460 | / |

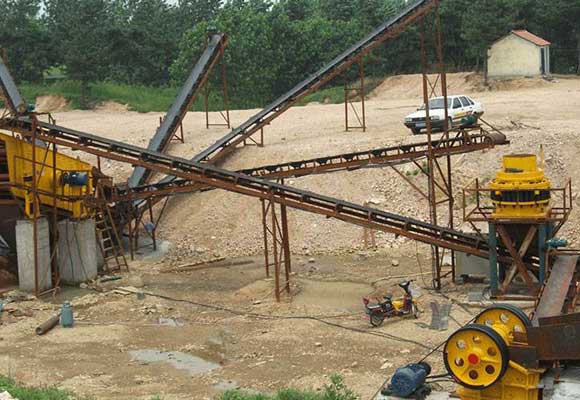

150 TPH Construction Crusher Plant
Capacity: 150 TPH
Estimated Price Range: $105,000 – $220,000
| Raw material hardness | Hard |
| Feeding size | โค500mm |
| Type of production line | Mobile Type |
| Floor area | 2500 sq. ft. |
| Types of finished products | 3 |
| Finished product specifications | 0-10, 10-20, 20-30 mm |
Components of 150 TPH Portable Construction Crusher Plant
Our 150 tph construction crusher plant is mainly mobile type, consisting of a mobile hydraulic cone crusher plant and a mobile jaw crusher plant.
Compared with stationary construction crushing plant, mobile portable crusher plant is flexible enough to use in nearly any complicated working sites and significantly saves working space. Raw materials will be sent to jaw crusher through feeder, after primary crushing, the material will then be transported to cone crusher.
SZYLY200 Mobile Hydraulic Cone Crusher
| Model | SZYLY200 |
| Vibrating Feeder Size (mm) | 1000×5500 |
| Max Feeding Size (mm) | 185 |
| Crusher Feed Inlet (mm) | 210 |
| Powertrain Engine (kW) | 264 |
| Weight (t) | 35/41 |
| Overall Dimension (mm) | 14500/16400×2700/3000×3500 |
SZEL106 Mobile Jaw Crusher
| Model | SZEL106 |
| Vibrating Feeder Wide Length (mm) | 1060×4200 |
| Max Feeding Size (mm) | 560 |
| Side Belt Conveyor Wide Length (mm) | 650×4000 |
| Crusher Feed Inlet (mm) | 1060×700 |
| Weight (kg) | 42,000 |
| Overall Dimension (mm) | 15100x2800x3500 |
Parameters of 150 TPH Construction Production Line
| Model | Maximum Feeding size (mm) | Feeding Height (mm) | Silo Volume (m ยณ) | Vibrating Feeder Size (mm) | Crusher Model | Weight (t) |
| SZYLY200 Mobile Hydraulic Cone Crusher | 185 | 2600 | 5 | 1000×5500 | HPM200 | 35/41 |
| SZEL106 Mobile Jaw Crusher | 560 | 4000 | 6.5 | 1060×4200 | PE750x1060 | 42 |
200 TPH Construction Crusher Plant
Capacity: 200 TPH
Estimated Price Range: $220,000 – $230,000
| Raw material hardness | Hard |
| Feeding size | โค630mm |
| Type of production line | Stationary Type |
| Floor area | 5500 sq. ft. |
| Types of finished products | 4 |
| Finished product specifications | 0-5, 5-10, 10-20, 20-30 mm |
Components of 200 TPH Construction Crusher Plant
Shunzhi 200 tph construction crusher plant consists of vibrating feeder, 200 tph jaw crusher, 200 tph cone crusher, 200 tph vsi crusher machine and a vibrating screen.
Our 200 tph construction crusher plant deals with hard raw materials, those materials are transported to primary crushing process through vibrating feeder, and then breaks into smaller size by jaw crusher, then comes the cone crusher, once the raw material is crushed small enough, it will then be sent into the vsi sand maker machine. The final crushing process is vibrating screen, fine sand will be produced through the whole crushing line.
GZD960*3800 Vibrating Feeder
| Model | GZD960x3800 |
| Feeding Chute Size (mm) | 960×3800 |
| Max Feeding Size (mm) | 500 |
| Capacity (t/h) | 120-210 |
| Motor Power (kW) | 11 |
| Weight (kg) | 4210 |
| Overall Dimension (mm) | 3850x1950x1630 |
PE750*1060 Jaw Crusher
| Model | PE750*1060 |
| Feeding Chute Size (mm) | 750ร1060 |
| Max Feeding Size (mm) | 630 |
| Capacity (t/h) | 110-320 |
| Motor Power (kW) | 8P 110 |
| Weight (kg) | 29,000 |
| Adjusting Range of Discharge (mm) | 80-140 |
HPM200 Multi Hydraulic Cone Crusher
| Model | HPM200 |
| Feeding Chute Size (mm) | 185, 125, 95, 76, 54 |
| Max Feeding Size (mm) | 145, 100, 75, 60, 45 |
| Capacity (t/h) | 160-250, 145-250, 120-250, 108-210, 81-210 |
| Motor Power (kW) | 160 |
| Feeding Port Size (mm) | 185, 125, 95, 76, 54 |
| Discharge Opening Adjustment Range (mm) | 22, 18, 14, 12, 10 |
VSI5X7615 Sand Maker
| Model | PE750*1060 |
| Feeding Chute Size (mm) | 150-280, 70-140 |
| Max Feeding Size (mm) | 30, 35 |
| Rotation Speed (r/min) | 1700-1900 |
| Motor Power (kW) | 2ร75 (100) |
| Weight (kg) | 8,600 |
| Overall Dimension (mm) | 4100ร2330ร2300 |
JC440 Vibrating Screen
| Model | JC440 |
| Feed Opening Size (mm) | 760×1020 |
| Discharge Range (mm) | 70-200 |
| Capacity (t/h) | 120-520 |
| Motor Power (kW) | 90-110 |
| Weight (kg) | 27,810 |
Parameters of 200 TPH Construction Production Line
| Model | Feeding Chute Size(mm) | Max Feeding Size(mm) | Capacity(t/h) | Motor Power(kW) | Weight(kg) | Overall Dimension(mm) |
| GZD960*3800 Vibrating Feeder | 960×3800 | 500 | 120-210 | 11 | 14210 | 3850x1950x1630 |
| PE750*1060 Jaw Crusher | 750ร1060 | 630 | 110-320 | 8P 110 | 29,000 | / |
| HPM200 Multi Hydraulic Cone Crusher | 185, 125, 95, 76, 54 | 145, 100, 75, 60, 45 | 160-250, 145-250, 120-250, 108-210, 81-210 | 160 | / | / |
| VSI5X7615 Sand Maker | 150-280, 70-140 | 30, 35 | / | 2ร75 (100) | 8,600 | 4100ร2330ร2300 |
| JC440 Vibrating Screen | 760×1020 | / | 120-520 | 90-110 | 27,810 | / |
250-300 TPH Construction Crusher Plant
Capacity: 250TPH – 300 TPH
Estimated Price Range: $170,000 – $182,000
| Raw material hardness | Soft |
| Feeding size | โค630mm |
| Type of production line | Stationary Type |
| Floor area | 3500 sq. ft. |
| Types of finished products | 3 |
| Finished product specifications | 0-5, 5-40, 40-70 mm |
Components of 250-300 TPH Construction Crusher Plant
For the soft raw material, Shunzhi 250 tph construction crusher or 300 tph construction crusher plant is your perfect choice. The major machines involved in the whole crushing line include a vibrating feeder, a 300 tph jaw crusher, two sets of 250 impact crushers and a vibrating screen.
The primary jaw crusher is set to crush large rocks into a middle-sized rocks, then the impact crusher breaks the rocks into smaller shapes. After the final sand screening, you will get your wanted size.
GZD1100*4900 Vibrating Feeder
| Model | GZD1100*4900 |
| Feeding Chute Size (mm) | 1100×4900 |
| Max Feeding Size (mm) | 650 |
| Capacity (t/h) | 220-460 |
| Motor Power (kW) | 15 |
| Weight (kg) | 5500 |
| Overall Dimension (mm) | 5200x2050x1700 |
PE900*1200 Jaw Crusher
| Model | PE900*1200 |
| Feeding Chute Size (mm) | 900ร1200 |
| Max Feeding Size (mm) | 750 |
| Capacity (t/h) | 220-380 |
| Motor Power (kW) | 8P 160 |
| Weight (kg) | 52,000 |
| Adjusting Range of Discharge (mm) | 95-165 |
PF1320 Impact Crusher
| Model | PF1320 |
| Feeding Chute Size (mm) | 993×2000 |
| Max Feeding Size (mm) | 500 |
| Capacity (t/h) | 140-380 |
| Motor Power (kW) | 6P 250 |
| Weight (kg) | 34,000 |
| Overall Dimension (mm) | 3220x3100x3120 |
JC443 Vibrating Screen
| Model | JC443 |
| Feed Opening Size (mm) | 850×1100 |
| Discharge Range (mm) | 80-215 |
| Capacity (t/h) | 170-625 |
| Motor Power (kW) | 110-160 |
| Weight (kg) | 34,722 |
Parameters of 250-300 TPH Construction Production Line
| Model | Feeding Chute Size(mm) | Max Feeding Size(mm) | Capacity(t/h) | Motor Power(kW) | Weight(kg) | Overall Dimension(mm) |
| GZD1100*4900 Vibrating Feeder | 1100×4900 | 650 | 220-460 | 15 | 5500 | 5200x2050x1700 |
| PE900*1200 Jaw Crusher | 900ร1200 | 750 | 220-380 | 8P 160 | 52,000 | / |
| PF1320 Impact Crusher | 993×2000 | 500 | 140-380 | 6P 250 | 34,000 | 3220x3100x3120 |
| JC443 Vibrating Screen | 850×1100 | / | 170-625 | 110-160 | 34,722 | / |
500-600 TPH Construction Crusher Plant
Capacity: 500TPH – 600 TPH
Estimated Price Range: $58,000 – $70,000
| Raw material hardness | Hard |
| Feeding size | โค1000mm |
| Type of production line | Stationary Type |
| Floor area | 6500 sq. ft. |
| Types of finished products | 4 |
| Finished product specifications | 0-5, 5-10, 10-20, 20-30 mm |
Components of 500-600 TPH Construction Crusher Plant
If you want a construction crusher plant with 500-600 tph capacity, we would equip a vibrating feeder, 500/600 tph jaw crusher, two sets of single cylinder cone crushers, and 4 sets of vibrating screens.
This plant is perfect for crushing hard materials. Through primary crushing and secondary crushing, the crushed construction will be sent to vibrating screen for screening. Our machines are all in delicate design to guarantee efficient working performance and quality output.
GZD1500*6000 Vibrating Feeder
| Model | GZD1500*6000 |
| Feeding Chute Size (mm) | 1500×6000 |
| Max Feeding Size (mm) | 950 |
| Capacity (t/h) | 500-850 |
| Motor Power (kW) | 30 |
| Weight (kg) | 9970 |
| Overall Dimension (mm) | 6160x2918x2292 |
PE1200*1500 Jaw Crusher
| Model | PE1200*1500 |
| Feeding Chute Size (mm) | 1200ร1500 |
| Max Feeding Size (mm) | 1020 |
| Capacity (t/h) | 400-800 |
| Motor Power (kW) | 6P 160-240 |
| Weight (kg) | 100,900 |
| Adjusting Range of Discharge (mm) | 40-100 |
SC315 Single Cylinder Cone Crusher
| Model | SC315 |
| Feeding Chute Size (mm) | 275, 215, 175, 85 |
| Max Feeding Size (mm) | 220, 170, 170, 70 |
| Capacity (t/h) | 177-662, 209-643, 162-552, 175-325 |
| Motor Power (kW) | 315 |
| Minimum Discharge Opening Size (mm) | 32, 29, 29, 19 |
| Cavity Type | F1, F2, F3, F4 |
JC663 Vibrating Screen
| Model | JC663 |
| Feed Opening Size (mm) | 1200×1600 |
| Discharge Range (mm) | 150-350 |
| Capacity (t/h) | 500-1450 |
| Motor Power (kW) | 220-250 |
| Weight (kg) | 90,789 |
Parameters of 500-600 TPH Construction Production Line
| Model | Feeding Chute Size(mm) | Max Feeding Size(mm) | Capacity(t/h) | Motor Power(kW) | Weight(kg) | Overall Dimension(mm) |
| GZD1500*6000 Vibrating Feeder | 1500×6000 | 950 | 500-850 | 30 | 9970 | 6160x2918x2292 |
| PE1200*1500 Jaw Crusher | 1200ร1500 | 1020 | 400-800 | 6P 160-240 | 100,900 | / |
| SC315 Single Cylinder Cone Crusher | 275, 215, 175, 85 | 220, 170, 170, 70 | 177-662, 209-643, 162-552, 175-325 | 315 | / | / |
| JC663 Vibrating Screen | 1200×1600 | / | 500-1450 | 220-250 | 90,789 | / |
1000 TPH Stone Crusher Plant
Capacity: 1000 TPH
Estimated Price Range: $850,000 – $950,000
| Raw material hardness | Soft |
| Feeding size | โค800mm |
| Type of production line | Stationary Type |
| Floor area | 110,000 sq. ft. |
| Types of finished products | 4 |
| Finished product specifications | 0-5, 5-10, 10-20, 20-30 mm |
Components of 1000 TPH Construction Crusher Plant
Shunzhi 1000 tph construction crusher plant is normally a customized crushing line, the normal crushing plant machines include a vibrating feeder, a 1000 tph jaw crusher, an intermediate silo, two sets of impact crusher and a set of vibrating screen.
This plant is suitable for processing super hard materials. The price of 1000 tph construction crusher plant is determined by machine models, and if you want a 1000 tph construction crusher plant, please contact us and tell us all your requirements, we will give detailed solutions based on your needs.
GZD1500*6000 Vibrating Feeder
| Model | GZD1500*6000 |
| Feeding Chute Size (mm) | 1500×6000 |
| Max Feeding Size (mm) | 950 |
| Capacity (t/h) | 500-850 |
| Motor Power (kW) | 30 |
| Weight (kg) | 9970 |
| Overall Dimension (mm) | 6160x2918x2292 |
PE1500*1800 Jaw Crusher
| Model | PE1500*1800 |
| Feeding Chute Size (mm) | 1500ร1800 |
| Max Feeding Size (mm) | 1200 |
| Capacity (t/h) | 500-1000 |
| Motor Power (kW) | 8P 335 |
| Weight (kg) | 139,000 |
| Adjusting Range of Discharge (mm) | 220-350 |
PF1820 Impact Crusher
| Model | PF1820 |
| Feeding Chute Size (mm) | 1260×2040 |
| Max Feeding Size (mm) | 800 |
| Capacity (t/h) | 400-800 |
| Motor Power (kW) | 4P 630-710 |
| Weight (kg) | 83,200 |
| Overall Dimension (mm) | 4400x3866x4009 |
JC983 Vibrating Screen
| Model | JC983 |
| Feed Opening Size (mm) | 1800×2100 |
| Discharge Range (mm) | 175-350 |
| Capacity (t/h) | 700-2100 |
| Motor Power (kW) | 355-450 |
| Weight (kg) | 180,000 |
Parameters of 1000 TPH Construction Production Line
| Model | Feeding Chute Size(mm) | Max Feeding Size(mm) | Capacity(t/h) | Motor Power(kW) | Weight(kg) | Overall Dimension(mm) |
| GZD1500*6000 Vibrating Feeder | 1500×6000 | 950 | 500-850 | 30 | 9970 | 6160x2918x2292 |
| PE1500*1800 Jaw Crusher | 1500ร1800 | 1200 | 500-1000 | 8P 335 | 139,000 | / |
| PF1820 Impact Crusher | 1260×2040 | 800 | 400-800 | 4P 630-710 | 83,200 | 4400x3866x4009 |
| JC983 Vibrating Screen | 1800×2100 | / | 700-2100 | 355-450 | 180,000 | / |
Global Cases
20tph Construction Crusher Works in Kenya
Our customer from Kenya was very satisfied with the construction crusher plant of Shunzhi company with its high durability, strong power, and quiet and easy to control operation. He also said that the 20t/h crusher plant perfectly crushed materials into adjustable aggregate sizes for his construction projects.
50tph Construction Crusher Plant Sent to Egypt
One of our customer from Egypt remarked on the easy-to-handle operation, the high efficiency of the construction waste crushing, fast crushing speed, the low noise, and the time-saving compact structure. Customers also said that the delivery is very fast and replacement of parts is affordable.
150tph Construction Crushing Plant Works in the Congo
“The 150 ton per hour construction crusher plant from Shunzhi is working very well at our construction waste recycling process in Congo. It helps us crush and recycle big amounts of concrete and rocks efficiently. The crusher has saved a lot of time in breaking the waste down. ”
Working Process of Construction Crushing Plant
01
Primary crushing.
Firstly, the raw materials are sent to the jaw crusher for primary crushing. The finished products of this stage will be transported to the next process by belt conveyor.
02
Secondary crushing.
The materials will be crushed in a secondary crushing process such as an impact crusher or cone crusher. This step is followed by a screening process to separate the crushed materials into various sizes.
03
Sand washing.
The qualified material will be sent to a final product process such as sand making or washing plant for further processing. After this step, the end products are ready for usage and sale.
04
Transporting.
The last stage is to collect and transfer all the processed stone materials to the final destination. The transportation of raw materials and finished products may be carried out by truck, ship, train, or other suitable means.
The process can be adjusted according to the requirements of different customers and specific projects. In addition, some construction crushing plants are equipped with dust removal facilities to reduce environmental pollution.
These are the general steps involved in the construction crushing process. The specific details may depend on the project and local regulations. Tell us your requirement and we will offer tailor-made solutions based on your needs.
What Do Customers Talk About Us?
We got a construction crusher from Shunzhi recently. They delivered it on time and showed us how to set it up and use it. The crusher works really well. Shunzhi gave us good service. We would tell other people to buy from Shunzhi if they need a stone crusher. They are a reliable company.
โ Naledi Moshoeshoe
Shunzhiโs machine works very efficiently and is easy to operate. Shunzhi’s customer service team helped us a lot too. They always answer our questions quickly. We had some issues but Shunzhi fixed them fast. They sent engineers to help set up the crusher so it performs best.
โ Chibuzo Nwankwo
Featured Products
Shunzhi Impact Crusher
Shunzhi impact crusher is crushing equipment that uses impact energy to crush materials. When the materials enter the action area of the blow bar, they are crushed by the high-speed impact of the blow bar…
Shunzhi Cone Crusher
Shunzhi cone crusher is used for medium crushing and fine crushing of various ores and rocks with compressive strength below 300 MPa. Shunzhi cone crusher adopts the principle of lamination and crushing…
Shunzhi Hammer Crusher
Shunzhi hammer crusher is suitable for crushing hard and medium hard materials in many industrial departments such as cement, chemistry, power station and metallurgy. The working principle is…
