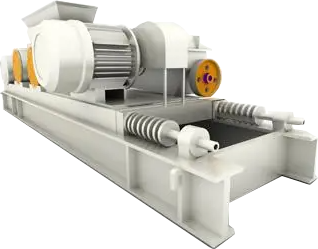

Shunzhi Double Roller Crusher
32% of operation costs reduction with 72% of efficiency improvement, Shunzhi double roller crusher is popular in industries like mining, building materials etc.
Our double roller crushing machine is suitable to crush ores and feeding materials with particle size less than 80mm and with compressive strength less than 1600MPa, and is also applicable to secondary crushing of medium hard ores such as limestone, iron ore, sintering ore, etc.

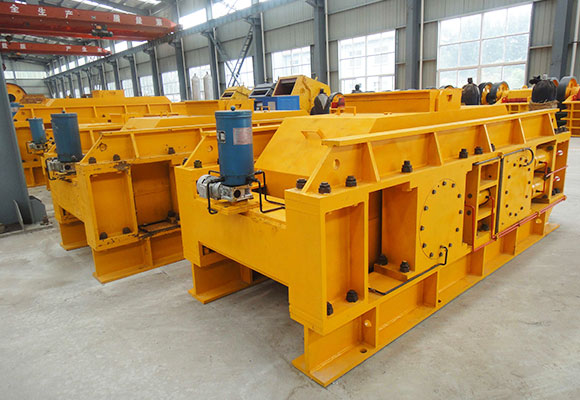

Types of Shunzhi Double Roller Crushers for Sale
Double roller crusher is a kind of crusher that uses two sets of rollers to crush materials. It is suitable for medium and fine crushing of materials with compressive strength not more than 160MPa, such as limestone, coal gangue, coke, slag, fly ash and other materials.
The working principle of double roller crusher is that the material is fed from the top inlet, and is gradually crushed by the two rollers that rotate in opposite directions and move toward each other. The material is continuously crushed under the action of friction and is gradually broken into smaller pieces until it is discharged from the bottom outlet.
Shunzhi now has 2PG double roller crushers and hydraulic double roller crushers for sale. Both types are compact in structure, stable in performance, energy-saving and environmental protection, high crushing efficiency, stepless adjustment of discharge particle size, low dust pollution, low noise, and easy maintenance.

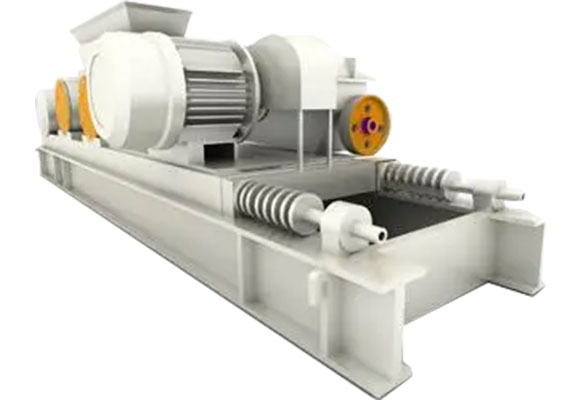

2PG Double Roller Crusher
The 2PG series double roller crusher is equipped with the overload protection device which can protect the machine from being damaged by material of too high hardness or too large blocks. When a certain degree of abrasion of rollers or tooth plates occurs, the spring device can automatically reset so that normal production can continue.
Shunzhi 2PG double roller crusher works well for further fine crushing after medium and coarse crushing process. Applied materials are limestone, slate, gypsum, coal, gangue, etc.
| Model | 2PG400x250 ~ 2PGY1800x1000 |
| Feeding Size(mm) | <35 ~ <100 |
| Capacity (t/h) | 2-10-70 ~ 160-240 |

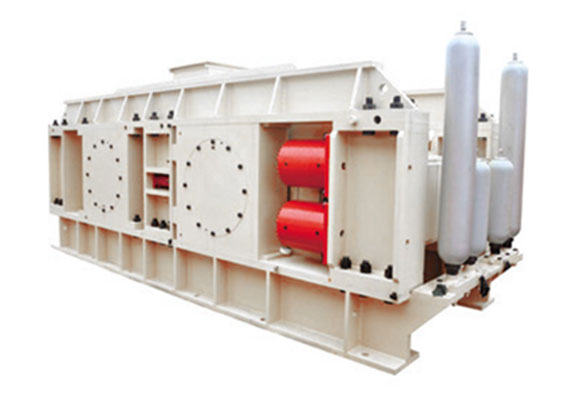

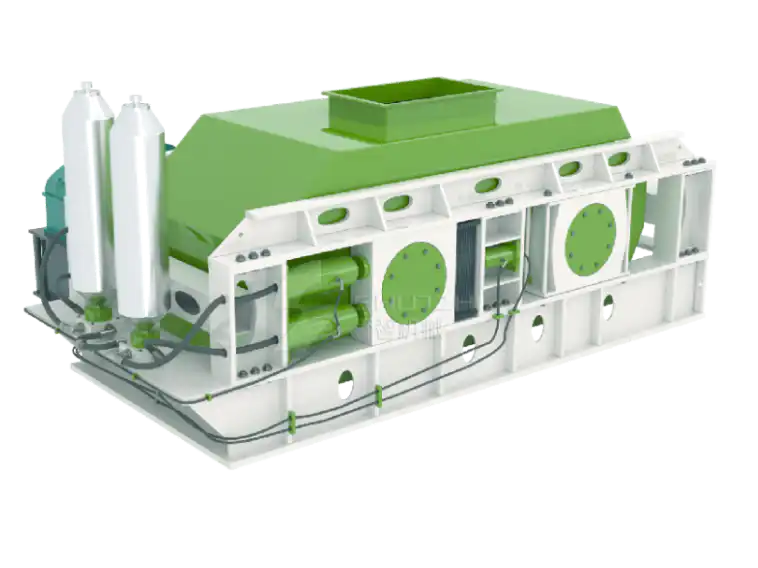

Hydraulic Double Roller Crusher
The hydraulic double roller crusher is a new type product which R&D by our company, on basis of years of experience on crushing machine. This machine is widely used for medium and fine crushing of materials with a compressive strength lower than 300MPa or materials with moisture content less than 35%.
Equipped with a dust-protected plate, the hydraulic double roller crusher is less polluted and easy to maintain. The compact structure also saves space for installation.
| Model | 2PGT400x250 ~ 2PGY2000x1000 |
| Roller diameter (mm) | ≤400 ~ ≤2000 |
| Capacity (t/h) | 2-10 ~ 320-350 |
Our Advantages
Shunzhi double roller crusher has gained a good reputation among customers for its advantages of high crushing efficiency, low noise, stable operation and convenient maintenance.
Shunzhi double roller crusher uses 2 sets of independently driven rollers to improve crushing efficiency, and also protect the crushing machine from wear or damage.
+72%
Crushing Efficiency
Shunzhi double roller crusher adopts high-strength materials for body structure, key components and connection joints, which greatly reduces noise during operation.
-56%
Noise Generation
Shunzhi double roller crusher is equipped with multiple safety devices, such as over-loading protection, motor anti-locking device and safety switch, to ensure stable operation.
100%
Stable Operation
Our machine adopts centralized lubrication system, providing sufficient and timely lubrication for key components, and greatly reducing maintenance difficulty and costs.
100%
Easy Maintenance
Shunzhi Double Roller Crusher Price List
| Types | Price Range |
| 2PG Double Roller Crusher | $1,500 – $8,000 |
| Hydraulic Double Roller Crusher | $2,000 – $10,000 |
The price of our double roller crushing machine depends on the specific model of the equipment. We have a variety of double roller crushers for you to choose from, each with different capacities and prices. And you can even customize the roll elements, tooth patterns, etc. according to your needs.
The specific price will be updated according to the quotation of the day and other factors, if you need to know the specific price of the double roller crusher, you can contact our online customer service for consultation. Our staff will be happy to provide you with a detailed quotation and product introduction.
How Shunzhi Double Roller Crusher Improves Your Business?
Shunzhi double roller crusher uses advanced technology and strict quality control to ensure stable operation and a low failure rate. More advantages are listed below:
Advanced Technology to Improve Crushing Efficiency
The traditional way of increasing the crushing efficiency of a crusher is to increase the crushing force. However, this will also lead to an increase in the wear of the crusher parts, resulting in shortened service life and increased maintenance costs.
The Shunzhi double roller crusher uses a different approach to increase the crushing efficiency. It uses two sets of independently driven rollers to crush the materials. The two sets of rollers are rotated in opposite directions and at different speeds. The material is first crushed by the slower roller and then further crushed by the faster roller. This two-stage crushing process can greatly improve the crushing efficiency, while also reducing the wear of the crusher parts.
Compact Structure Results in a Small Footprint
Shunzhi double roller crusher adopts the modular design principle.
The key components of our double roller crusher consist of two crushing rollers, a frame, a V-belt drive, two side plates, a mechanical spring system and an overload protection device.
And the main components of the crusher are installed on a common base. This compact structure results in a small footprint and easy installation.
Little Dust Pollution and Low Noise
Shunzhi double roller crusher is equipped with dust-proof plates on the two sides of the crushing rollers. And the gap between the dust-proof plates and the rollers can be adjusted to control the amount of dust generated. In addition, our double roller crusher adopts the plunging-type feeding design, which can effectively avoid the generation of dust.
The noise level of our double roller crusher is very low. And the sound-proof plates are installed on the two sides of the crushing chamber to further reduce the noise level.
Low Operation Costs
The operation of Shunzhi double roller crusher is very simple. And the maintenance costs are also low.
Our double roller crusher is also very energy-efficient. It adopts the frequency conversion speed control technology, which can save a lot of energy.
The above are the advantages of Shunzhi double roller crusher. If you are in need of a double roller crusher, please feel free to contact us. We will provide you with the best quality products and services.

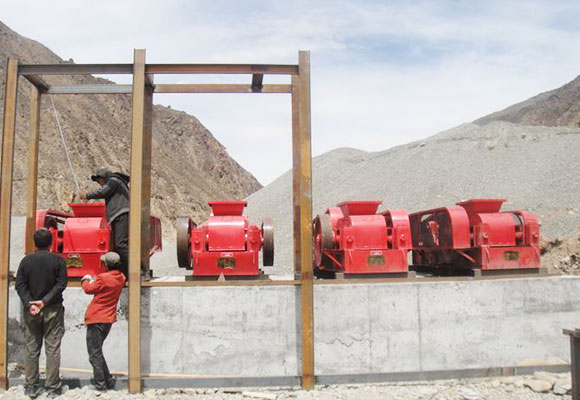

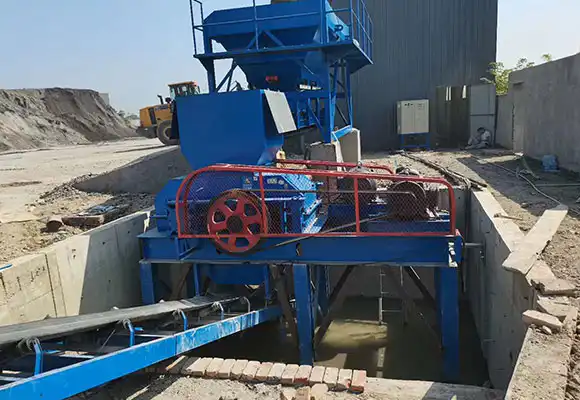

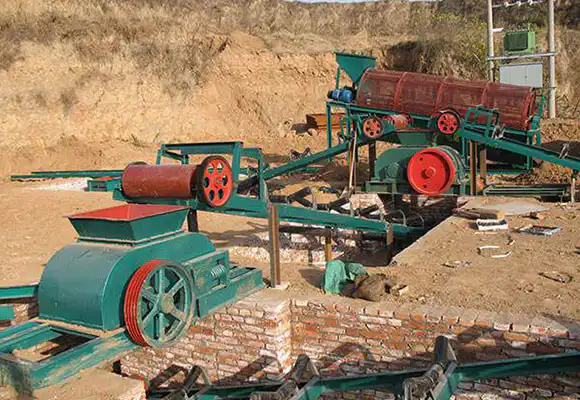

Global Cases

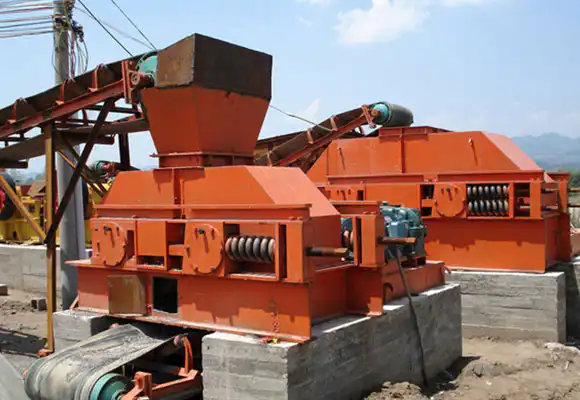

Double Roller Crusher Installed in Kenya
Our double roller crusher now is running smoothly in Kenya, used in a mining processing plant. The material to be crushed is manganese ore with Mohs hardness 5. The feeding size is 400mm and the discharging size is 3-8mm.
Double Roller Crusher Installed in Lebanon
One of our Lebanese customers bought a double roller crusher to produce 0-10mm end products. The feeding size is 80mm, and the capacity can reach 240tph. The discharging size is adjustable between 2-8mm.
Double Roller Crusher Sent to Malaysia
Shunzhi double roller crusher was sent to Malaysia in 2019. It was used in a mining plant to crush iron ore with Mohs hardness 5. The feeding size is 90mm and the discharge size is 2-8mm. The capacity can reach 300tph.
Double Roller Crusher Works in Uganda
In 2017, one of our Ugandan customers bought a 350t/h double roller crusher working as a secondary crushing machine to crush the limestone. The machine now operates smoothly and has low energy consumption.
Double Roller Crusher Specifications
| Model | Roller Diameter(mm) | Roller Width(mm) | Feeding Size(mm) | Discharging Size(mm) | Capacity(t/h) | Motor Power(kw) |
| 2PG400x250 | 400 | 250 | <35 | 2-8 | 2-10 | 5.5×2 |
| 2PG400x400 | 400 | 400 | <35 | 2-8 | 5-15 | 7.5×2 |
| 2PG610x400 | 600 | 400 | <40 | 2-8 | 10-20 | 15×2 |
| 2PG750x500 | 750 | 500 | <40 | 2-8 | 15-30 | 18.5×2 |
| 2PG800x600 | 800 | 600 | <40 | 2-8 | 25-40 | 22×2 |
| 2PGY1000x700 | 1000 | 700 | <60 | 2-8 | 35-60 | 30×2 |
| 2PGY1200x800 | 1200 | 800 | <60 | 2-8 | 50-100 | 45×2 |
| 2PGY1500x800 | 1500 | 800 | <80 | 2-8 | 90-140 | 90×2 |
| 2PGY1500x1000 | 1500 | 1000 | <80 | 2-8 | 120-180 | 110×2 |
| 2PGY1800x1000 | 1800 | 1000 | <100 | 2-8 | 160-240 | 160×2 |
What Do Customers Talk About Us?

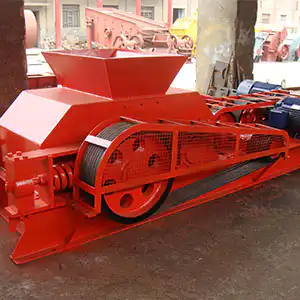

Shunzhi double roller crusher we bought this year has been used for more than half a year. The equipment is running smoothly and the performance is good. It can process 400 tons of materials per hour, which is much higher than the processing capacity of more than 350 tons at the time of purchase. It not only improves production efficiency, but also reduces maintenance costs and downtime of the equipment. Overall, it is a very good crushing equipment.
– Getachew Kassie

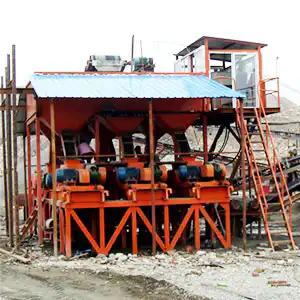

The double roller crusher from Shunzhi has been a great help for us. It is very efficient and its performance is outstanding. We have been using it for a long time and we are very satisfied. It is the best choice for us. Compact in structure and small in size, it is very convenient for us to use and transport. It is also very easy to operate and maintenance is simple. Thank you Shunzhi Machinery for your great product. We will continue to work with Shunzhi if have the chance.
– Graham Kersey
