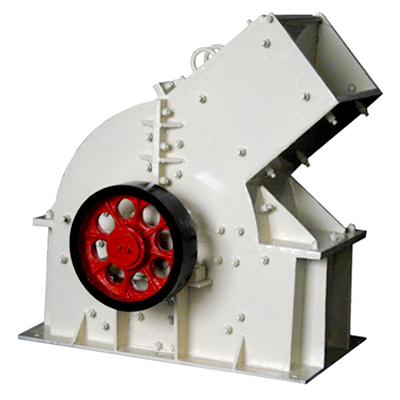

Shunzhi Hammer Crusher
25%-50% large crushing ratio and large output, Shunzhi hammer crusher is able to save a lot of energy and reduce production costs.
The whole machine adopts advanced technology, simple structure and small footprint. Since it can crush the 600-1800mm materials to 25mm or below, it is widely used in cement, sand and gravel mining, coal, metallurgy, highway construction and other industries.
Types of Shunzhi Hammer Crushers for Sale
Shunzhi has best price PC hammer crushers and heavy hammer crushers for sale. Both types are in high crushing efficiency, low wear rate, low noise generation and low power consumption.
The working principle of the hammer crusher is that the material is hit and impacted by the high-speed rotating hammer.
The biggest advantage of the Shunzhi PC hammer crusher is that it can crush the materials with large size and high hardness. Shunzhi heavy hammer crusher is more suitable for crushing limestone and other materials with medium hardness and low compressive strength.

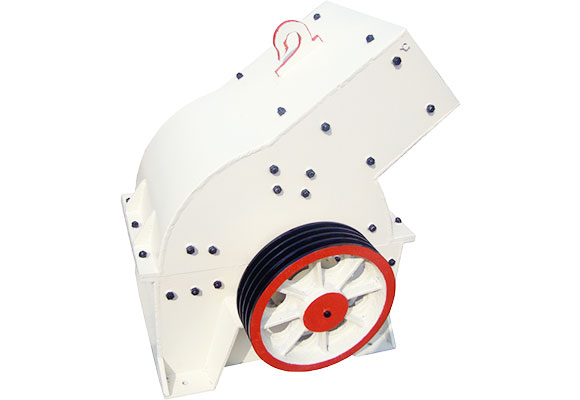

PC Hammer Crusher
Shunzhi PC hammer crusher is suitable for crushing materials with compressive strength of less than 200MPa. It is especially suitable for secondary crushing or fine crushing of limestone. The crusher has the advantages of large crushing ratio and high output.
The maximum feed size of the Shunzhi PC hammer crusher is 800mm, and the output size can be adjusted from 25mm to 50mm.
| Model | PC300*200 ~ PC1300*1200 |
| Input size (mm) | ๏ผ100 ~ ๏ผ250 |
| Capacity (t/h) | 3-5 ~ 80-200 |

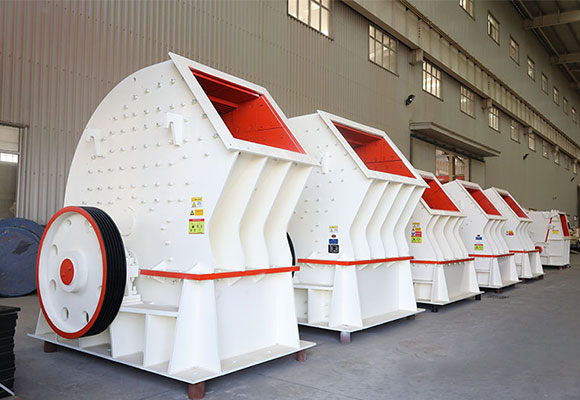

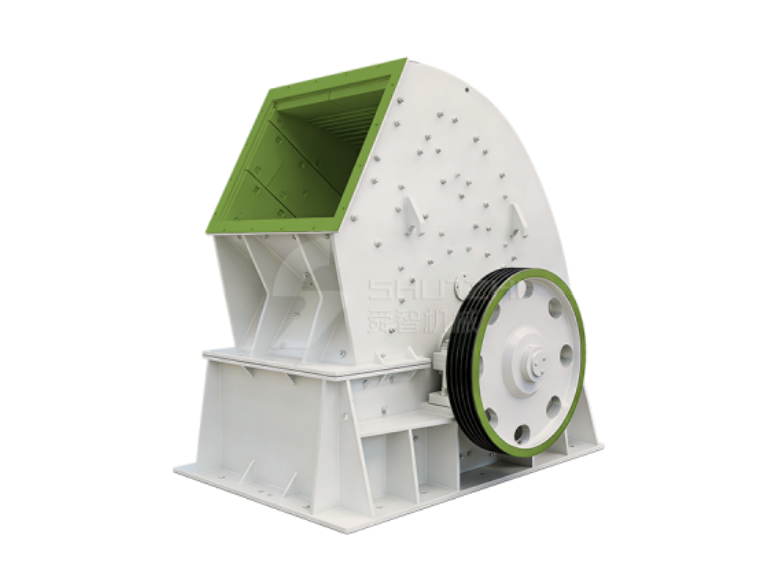

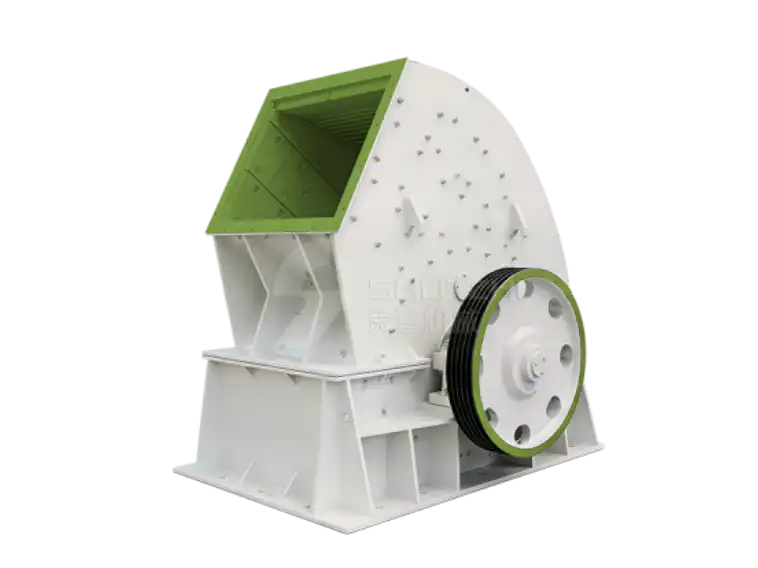

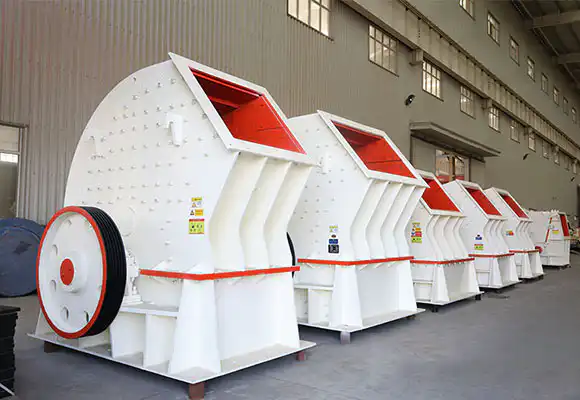

Heavy Hammer Crusher
Shunzhi heavy hammer crusher is designed to meet the requirements of small-sized and medium-sized business investors.
It combines the characteristics of traditional single-section hammer crusher and impact crusher, perfect for crushing medium hardness materials with compressive strength of less than 150MPa or materials with more than 40% calcium content.
| Model | PCZ1308 ~ PCZ2225 |
| Optimal feed size (mm) | โค380 ~ โค1000 |
| Capacity (t/h) | 60-160 ~ 1500-3000 |
Our Advantages
Shunzhi hammer crusher is a high-efficiency crushing equipment that uses advanced manufacturing technology and wear-resistant materials. It can reduce noise, power consumption, and wear rate.
Shunzhi hammer crusher uses high-strength wear-resistant materials and advanced technology to make the crushing chamber more scientific, the feeding port more reasonable, and the internal material circulation more efficient.
+67%
Crushing Efficiency
Shunzhi hammer crusher uses high-chromium alloy wear-resistant materials, steel joint connection. The sieve plate is also made of wear-resistant materials, which eliminate damage and effectively prolong the service life.
-80%
Machine Wear Rate
The new Shunzhi hammer crusher uses a sound-absorbing cover at the inlet and outlet of the main engine, and the sound insulation materials and structures inside the main engine are optimized to reduce the noise of crushing equipment.
-83%
Less Noise gENERATION
Shunzhi hammer crusher adopts a frequency conversion speed regulation system, which can adjust the feeding speed according to the load of the equipment and reduce the power consumption of the equipment during idling.
-33%
pOWER cONSUMPTION
Shunzhi Hammer Crushers Price List
| Types | Price Range |
| PC Hammer Crusher | $600 – $3,500 |
| Heavy Hammer Crusher | $1,000 – $8,000 |
The price of the mobile crushing plants varies based on the capacity, auxiliary machines, and other factors, so the above price range is for reference only.
If you are interested in our products or want to know more about the mobile crushing plant, please feel free to contact us. Our professional team will provide you with a perfect solution.
How Shunzhi Hammer Crusher Improves Your Business?
Shunzhi hammer crushers have been received lots of positive feedback from our customers due to its simple structure, high crushing efficiency and low production cost.
The high-chromium alloy plate hammer has good wear resistance, long service life and stable performance, which can fully meet your needs.
The unique structure of the box body and the replaceable sieve plate make it easy to maintain and clean, which is convenient for users.
Detailed benefits are listed below:
Full Control of the Finished Particle Size
Whether you are in need of coarse crushing or fine grinding, Shunzhi hammer crusher can fully meet your requirements. And finished products with different sizes can be adjusted by changing the rotor speed, the sieve plate or the gap setting between hammer and grind path liner.
High Crushing Efficiency and Large Output
The unique working principle of Shunzhi hammer crusher enables it to have high crushing efficiency and large output. And the rotor speed can be adjusted according to your needs.
The sieve plate is installed at the bottom of the machine, which can effectively avoid material blockage and improve crushing efficiency.
Low Wear Rate and Long Service Life
The high-chromium alloy plate hammer has good wear resistance and stable performance. And the sieve plate is made of wear-resistant materials, which can effectively prolong the service life of the machine.
The optimized design of the whole machine ensures that it has a low noise generation and low power consumption.
Reasonable Structure and Easy Maintenance
The hammer crusher has a compact structure and is easy to install and operate.
The rotor of the hammer crusher is composed of a spindle, disc, pin and hammer. The motor drives the rotor to rotate at high speed in the crushing chamber.
The materials are fed into the machine from the upper feed port and are crushed by the high-speed movement of the hammer.
For simple maintainance, the replaceable sieve plate makes it easy to disassemble and clean, which is convenient for users.
Safe and Reliable Operation
The safety device of the hammer crusher is reliable and effective, which can effectively protect the operator from being injured by the material.
The machine is equipped with an overload protection device, which can effectively protect the machine from being damaged by material overloading.
The electric control system of the machine is safe and reliable, which can effectively protect the operator from injury.
Global Cases

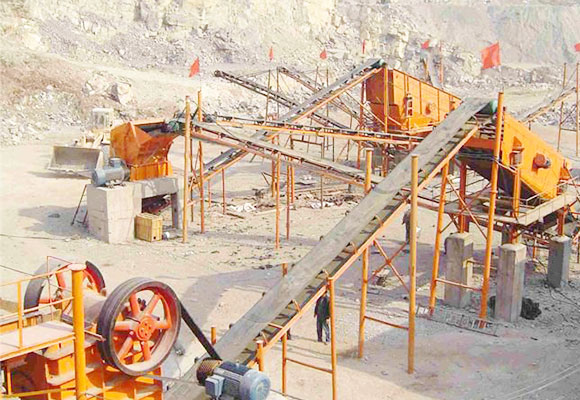

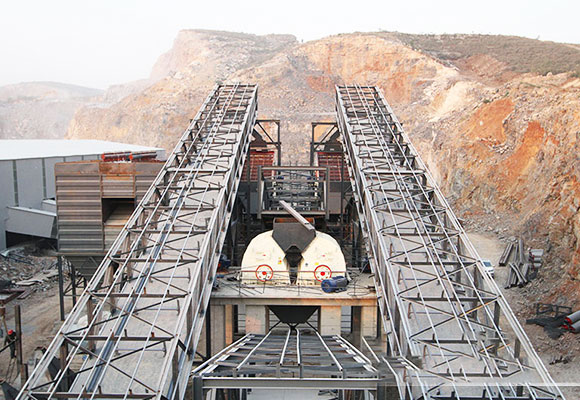

Hammer Crusher Works in Malaysia
Our Malaysian customer uses the heavy hammer crusher of our company to crush Limestone. The broken material is less than 80mm, and the customer is satisfied with the result.

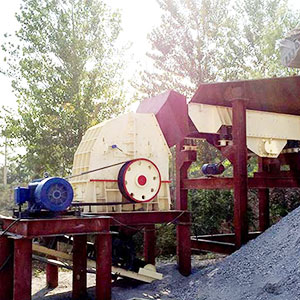

Hammer Crusher Works in Venezuela
Our hammer crusher was sent to Venezuela in April 2020. The customer is an old friend of Shunzhi Machinery. This time, he replaced the machine with a production capacity of 850t/h.

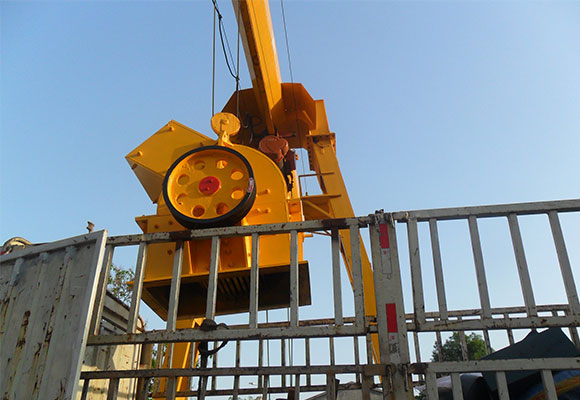

Hammer Crusher Sent to Uzbekistan
Shunzhi hammer crusher was sent to Uzbekistan again and has been successfully installed. The machine has been favored by our customers because of its high quality and its affordable price.

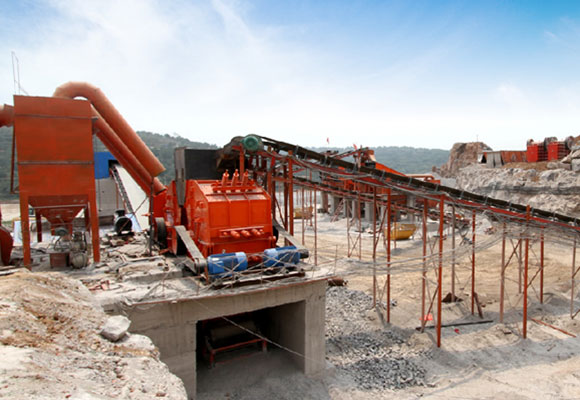

Hammer Crusher Installed in Tanzania
Another heavy hammer crusher is running smoothly in Tanzania now! This crusher is configured with electric motor,diesel engine and two options of discharging port and it can produce 1500 ton finished product per hour.
Heavy Hammer Crusher Specifications
| Model | Rotor diameter*length (mm) | Feeding port (length*width) (mm) | Optimal feed size (mm) | capacity (t/h) | Motor power (kw) | Dimensions (L x W x H) (mm) |
| PCZ1308 | 1330×790 | 870×780 | โค380 | 60-160 | 132 | 2880x2130x2390 |
| PCZ1410 | 1400×1000 | 1060×740 | โค450 | 80-210 | 2×90(160) | 2830x2100x2485 |
| PCZ1610 | 1600×1000 | 1090×930 | โค480 | 100-230 | 2×132 | 3370x2415x2750 |
| PCZ1612 | 1600×1200 | 1340×1140 | โค500 | 120-350 | 2×160 | 3370x2613x2750 |
| PCZ1615 | 1600×1500 | 1570×1140 | โค550 | 200-550 | 2×200 | 3370x2925x2750 |
| PCZ1716 | 1700×1600 | 1420×1200 | โค600 | 400-850 | 2×250 | 3520x3000x3210 |
| PCZ1720 | 1700×2000 | 2030×1200 | โค650 | 500-1000 | 2×400 | 3670x3390x3330 |
| PCZ1920 | 1900×2000 | 1980×1210 | โค750 | 800-1500 | 2×500 | 4490x3910x3600 |
| PCZ2225 | 2200×2500 | 2530×1610 | โค1000 | 1500-3000 | 1250 | 4890x5010x4560 |
What Do Customers Talk About Us?
We bought a PCZ1610 heavy hammer crusher several months ago. The machine is running smoothly and has brought great benefits to our production. It is stable in performance, energy efficient, environmentally friendly and high quality in finished products. It has saved us a lot of production costs and labor costs.
โ Bhupendra Patel
We use Shunzhi hammer crusher to crush medium hardness gravels. The finished products can be adjusted fully by ourselves and our customers are satisfied with the quality of products. Also, it can continuously work for a long time without any problem. Highly recommended if you are in search of a hammer crusher!
โ David Ameh
