Types of Mineral Processing & Crushing Equipment
Mineral processing relies on specialized equipment to separate, refine, and extract valuable minerals from ore. Our product line covers core categories: grinding equipment for particle size reduction, classification equipment for size sorting, flotation, gravity separation, and magnetic separation machines for mineral separation, gold extraction systems, washing equipment for impurity removal, plus thickening and dewatering units for slurry treatment, delivering end-to-end solutions for mining operations.
Grinding Equipment

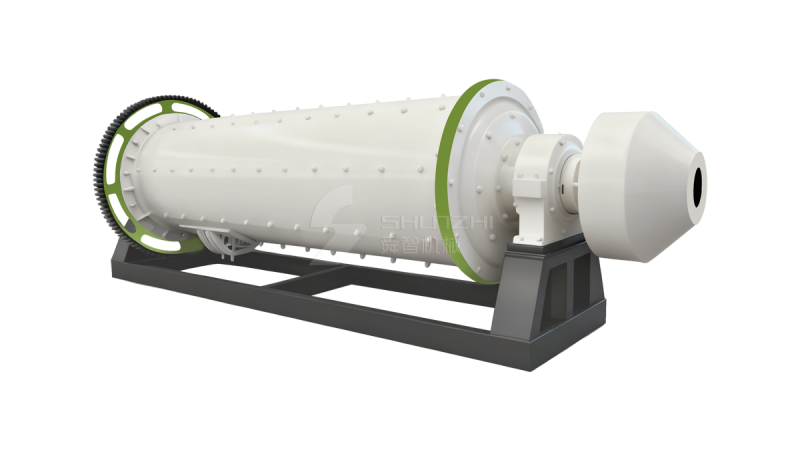

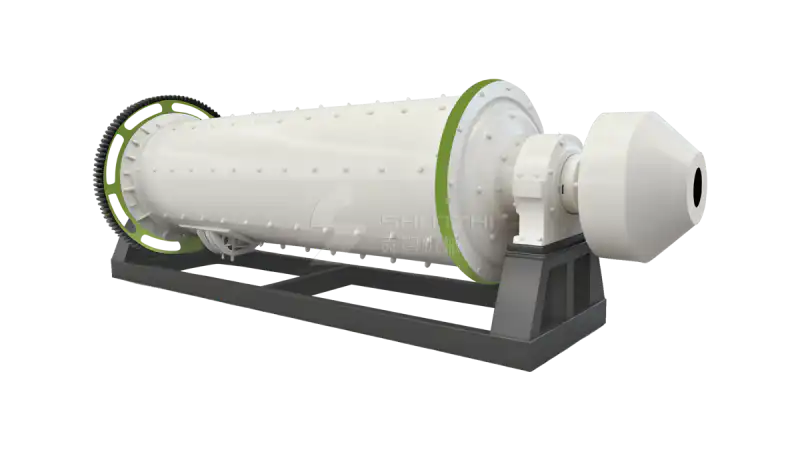

Wet Energy-saving Grid Type Ball Mill
Diameter: 900-4500mm
Power: 18.5-2300kW
Capacity: 900-4500mm

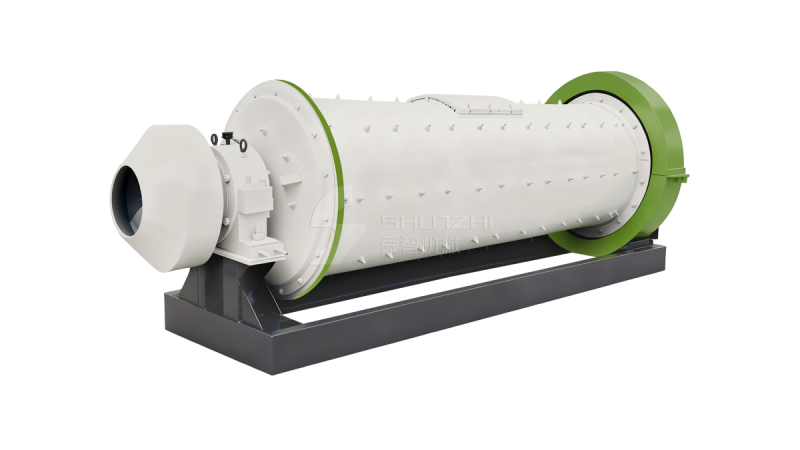

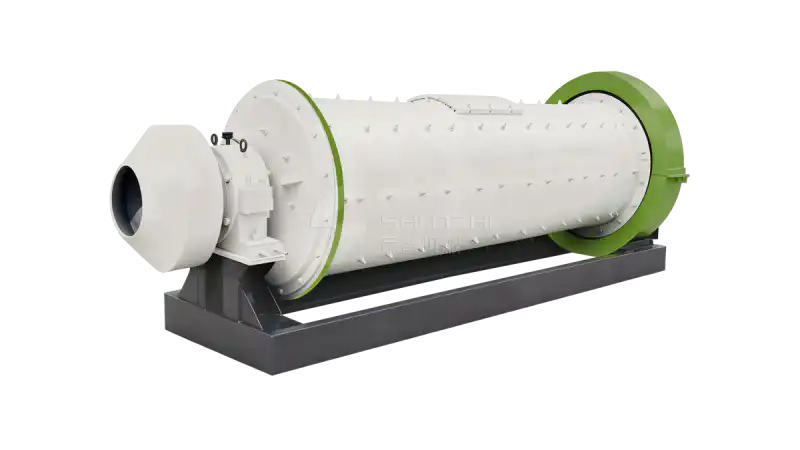

Straight-Cylinder Energy-saving Overflow Ball Mill
Diameter: 900-3600mm
Power: 15-1250kW
Capacity: 0.25-200t/h

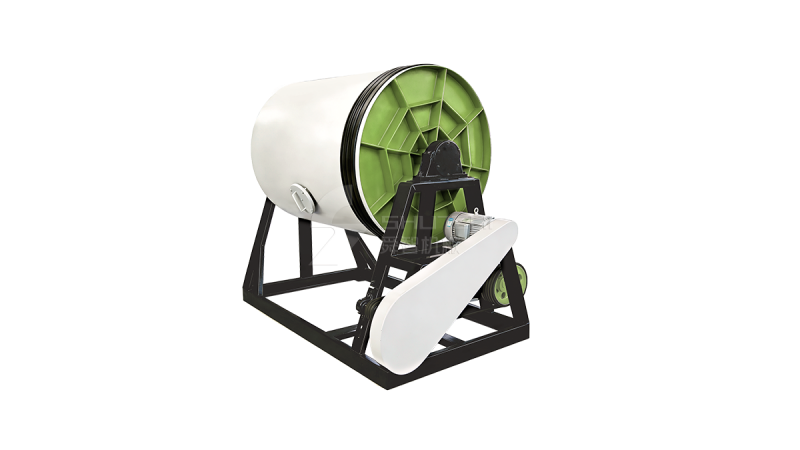

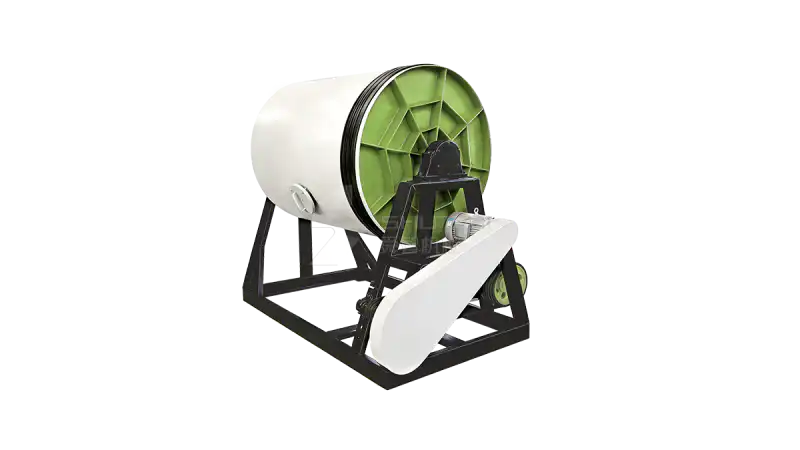

Batch Ball Mill
Diameter: 600-3200mm
Power: 2.2-75kW
Capacity: 0.05-15t/batch
Classification Equipment

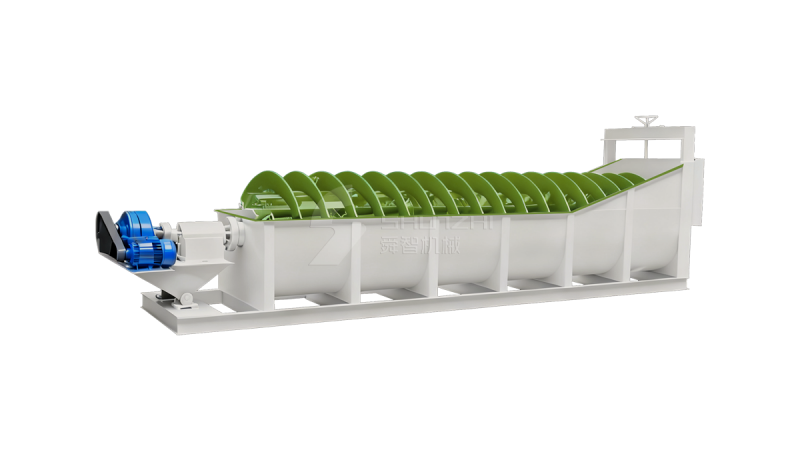

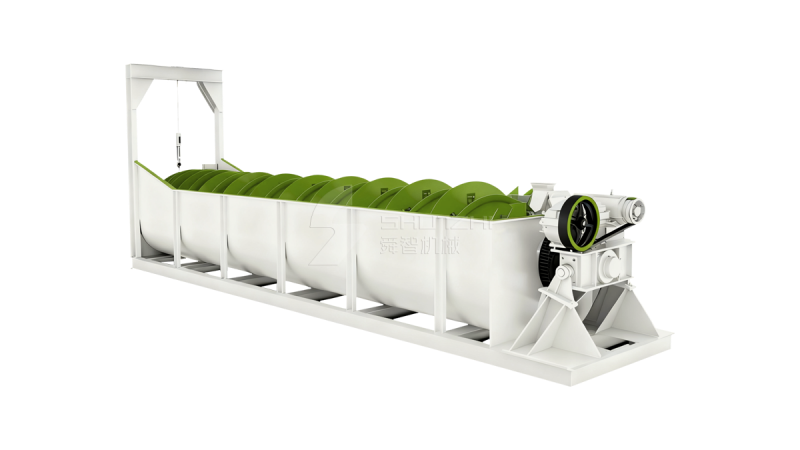

High Weir Spiral Classifier
Diameter: 300-3000mm
Power: 2.2*1-30*2kW
Capacity: 10-1783t/d

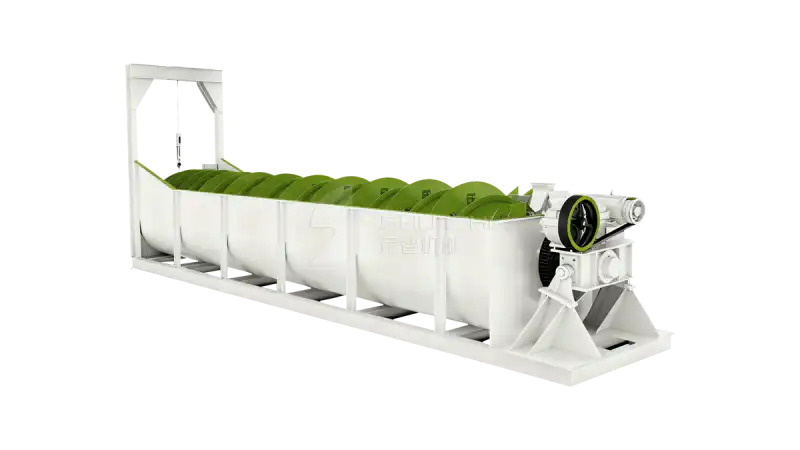

Submerged Spiral Classifier
Diameter: 1000-3000mm
Power: 53.5-45kW
Capacity: 50-1410t/d

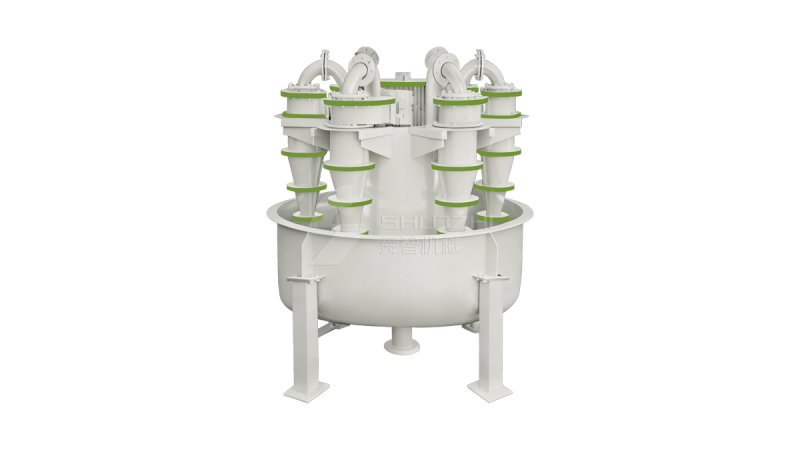

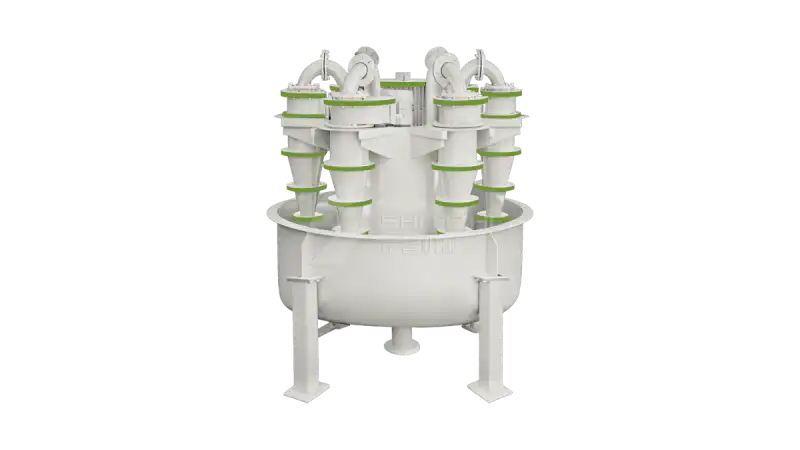

Hydrocyclone
Diameter: 30-280mm
Classification Size: 25-130μm
Capacity: 10-524m³/h
Flotation Equipment

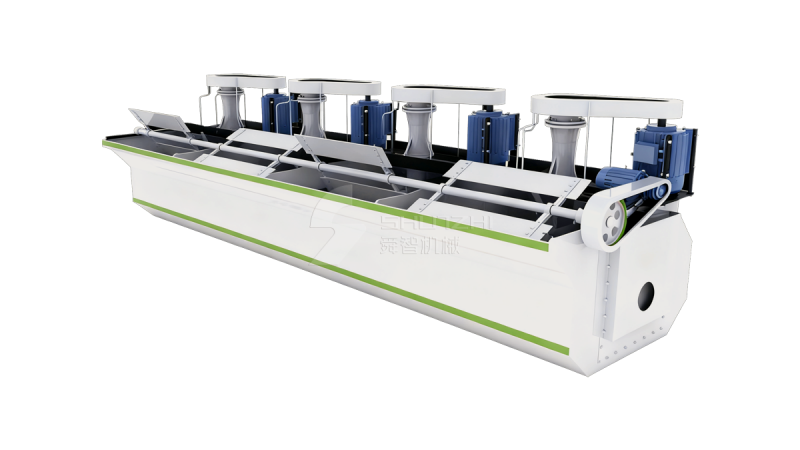

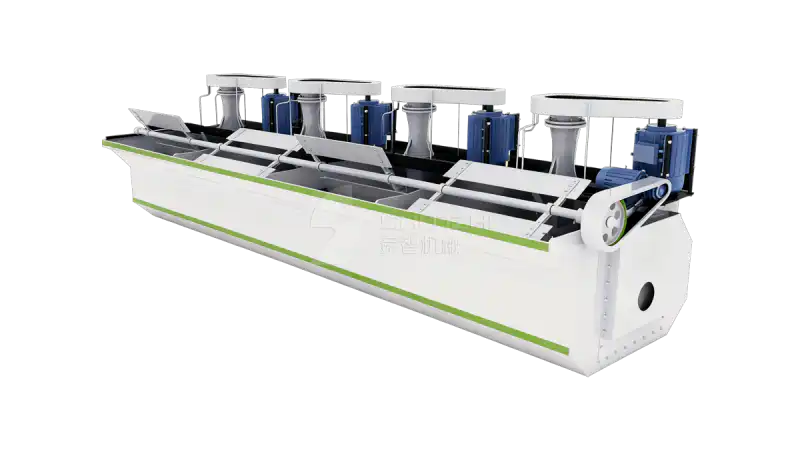

XCF Forced Air Flotation Cell
Diameter: 400-1050mm
Power: 5.5-55kW
Capacity: 0.2-38m³/h

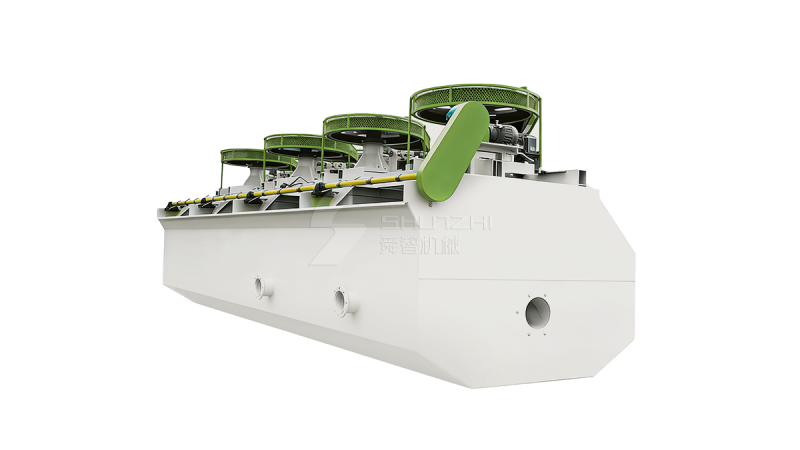

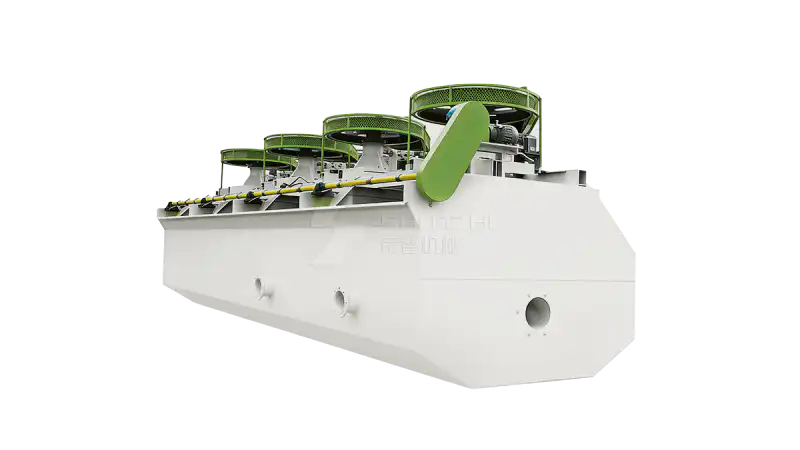

KYF Forced Air Flotation Cell
Diameter: 340-880mm
Power: 4-45kW
Capacity: 0.2-38m³/h

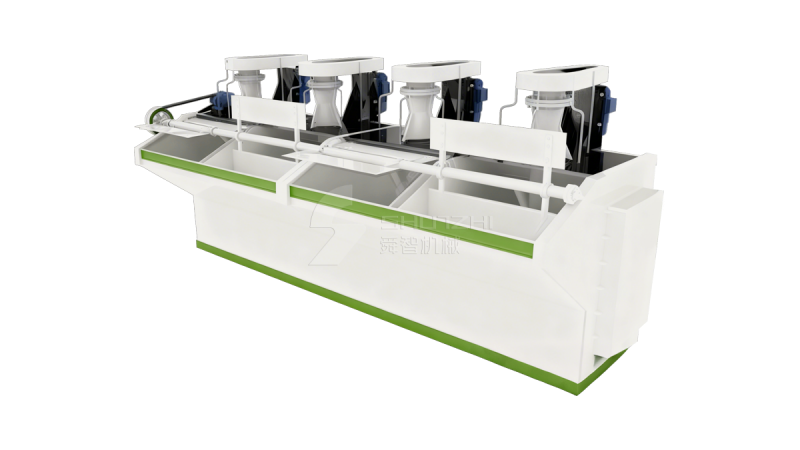

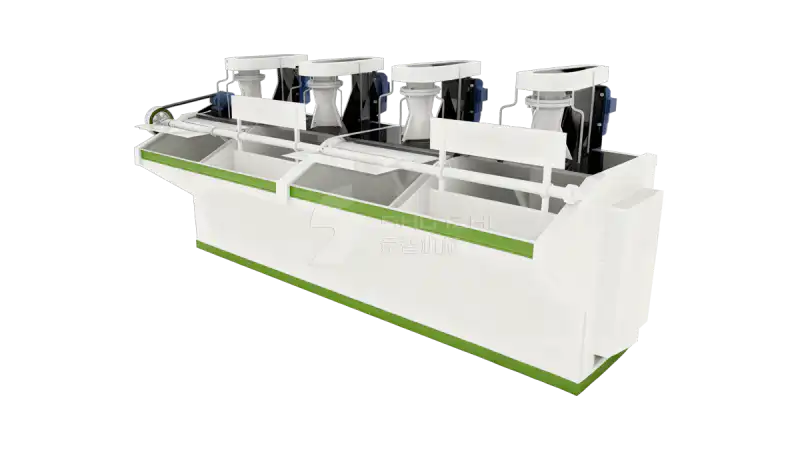

SF Self-aspirating Flotation Cell
Diameter: 300-850mm
Power: 1.5-45kW
Capacity: 0.2-12m³/h
Gravity Separation Equipment

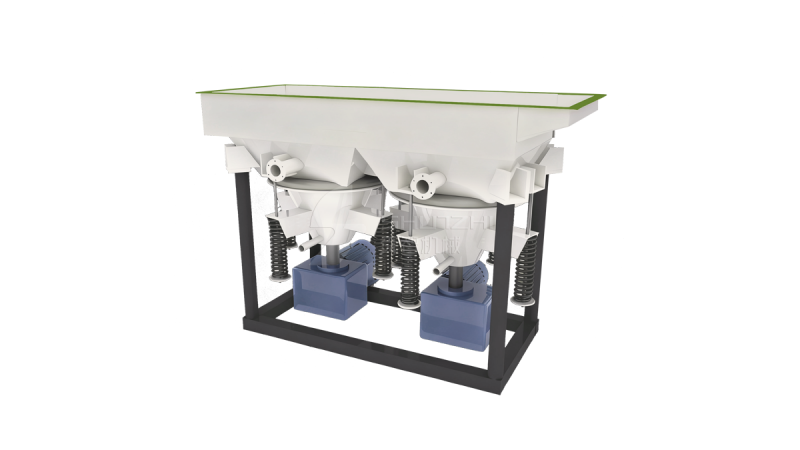

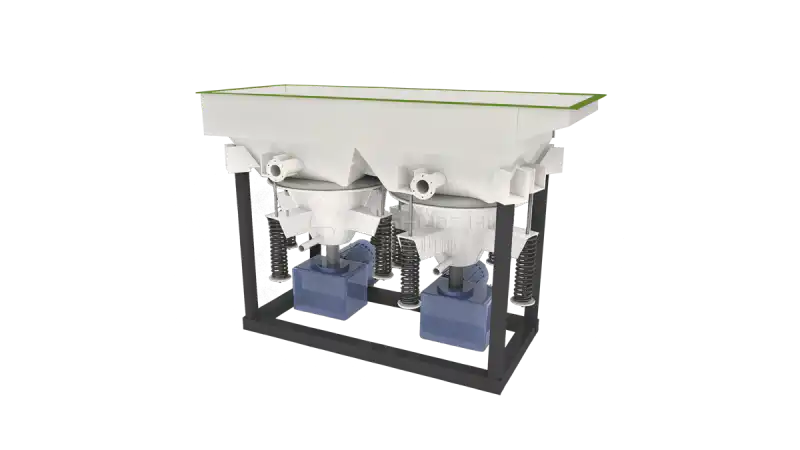

Jig
Feed Size: 0-10mm
Power: 1.5-7.5kW
Capacity: 1.5-25t/h

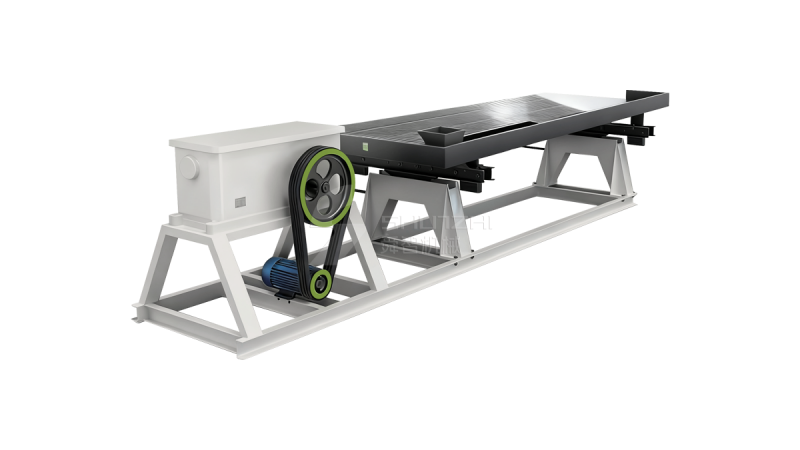

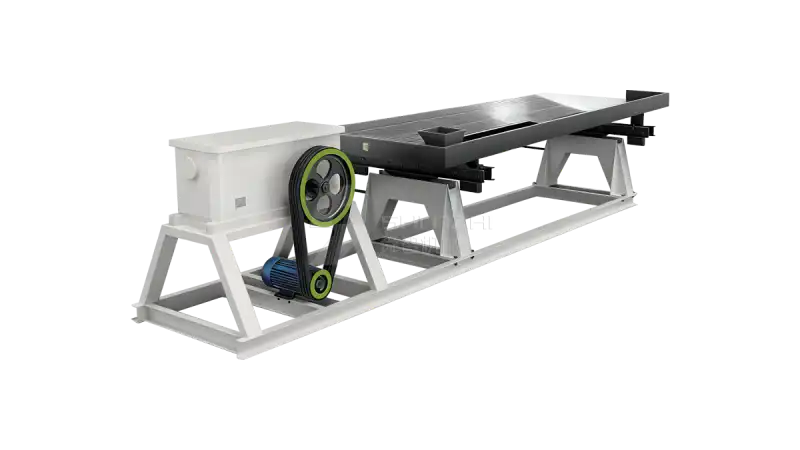

Shaking Table
Feed Size: 0.074-2mm
Power: 0.55-1.1kW
Capacity: 0.05-1t/h

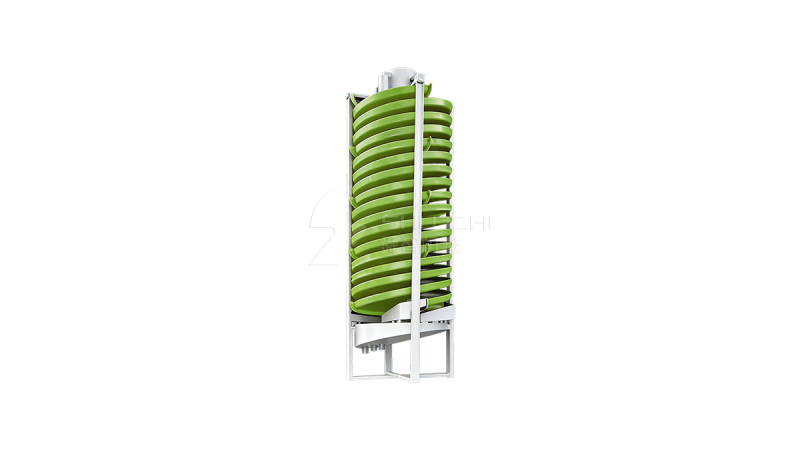

Spiral Chute
Feed Size: 0.02-2.0mm
Diameter: 400-2000mm
Capacity: 0.15-10t/h
Magnetic Separation Equipment

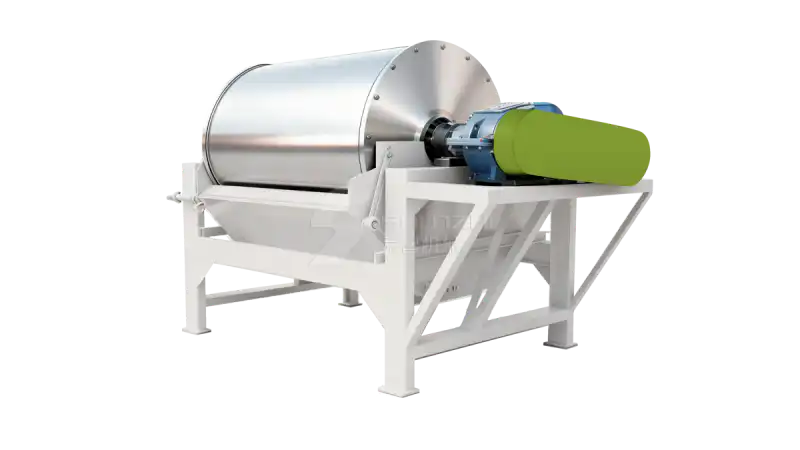

Magnetic Drum
Feed Size: 0-200mm
Diameter: 800-1200mm
Capacity: 0-350t/h

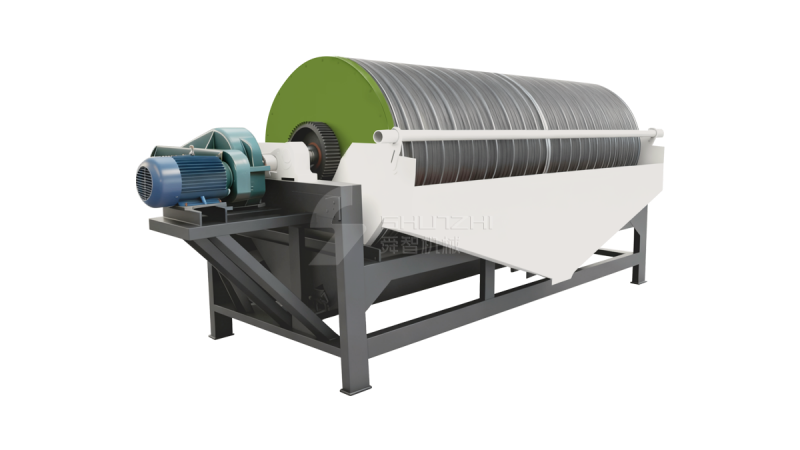

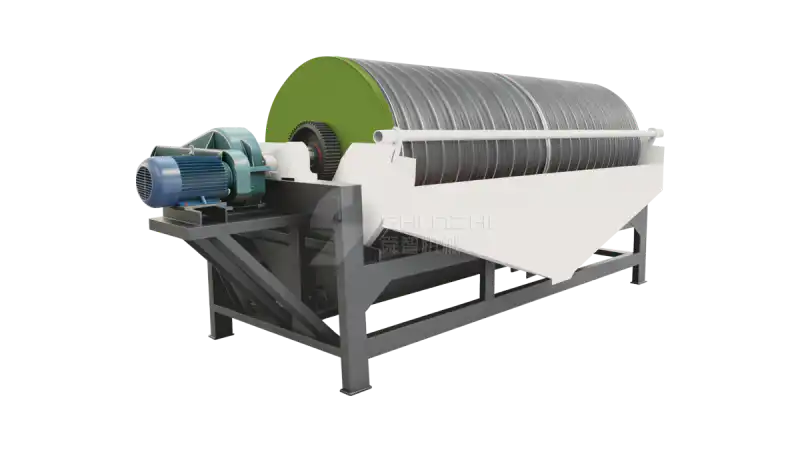

Magnetic Separator
Feed Size: 0-10mm
Power: 5.5-11kW
Capacity: 42-158t/h

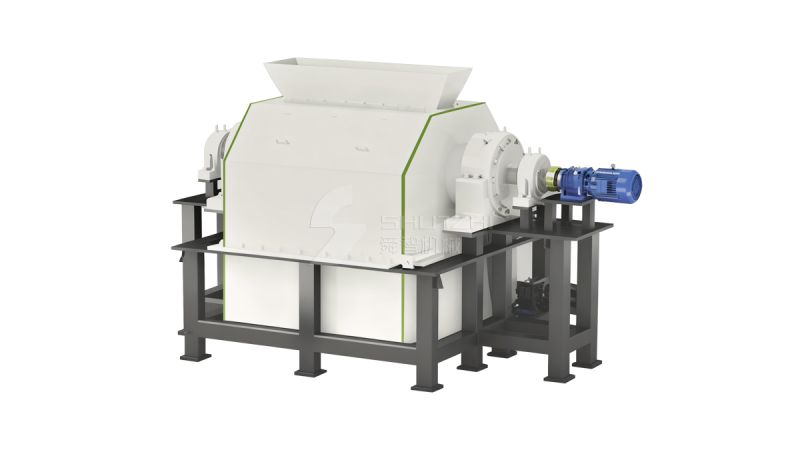

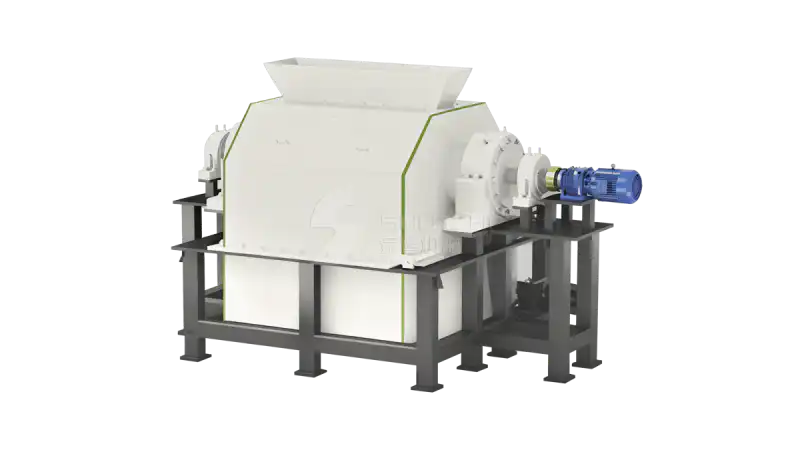

Dry Magnetic Separator
Feed Size: 0-30mm
Power: 5.5*2-11*2kW
Capacity: 35-150t/h
Gold Extraction Equipment

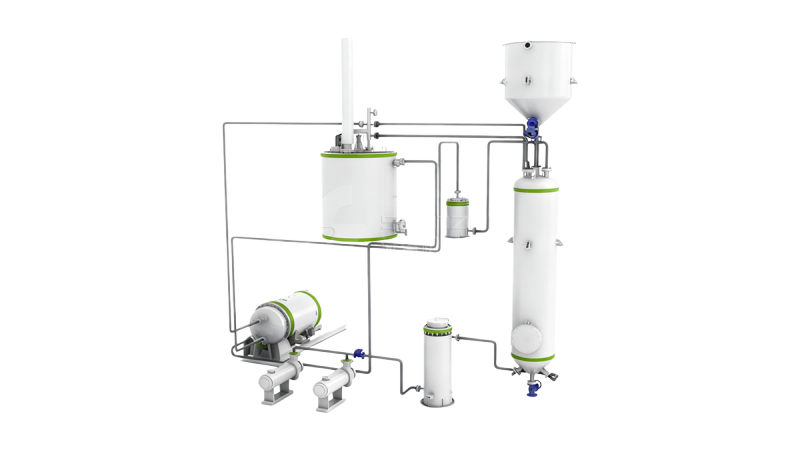

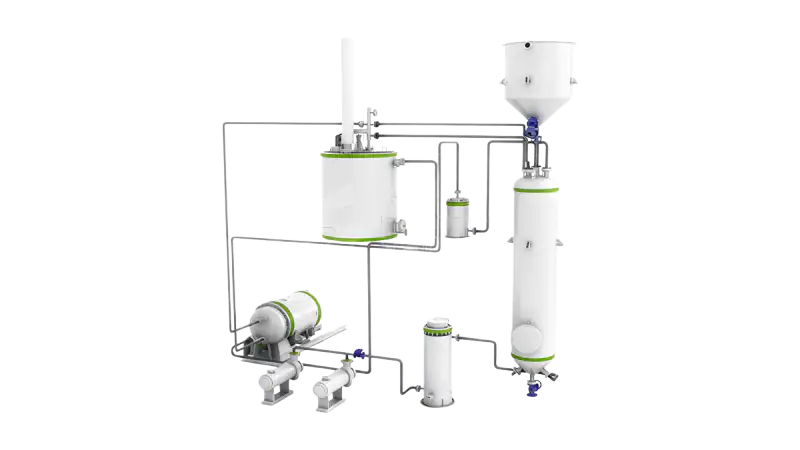

Desorption Electrolysis System
Raw Ore Grade: 2-20g/t
Power: 100-2500kW
Capacity: 2-50t/d

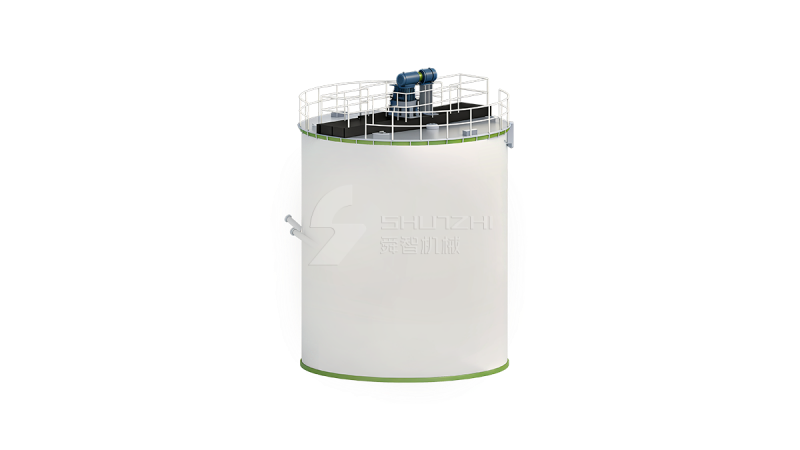

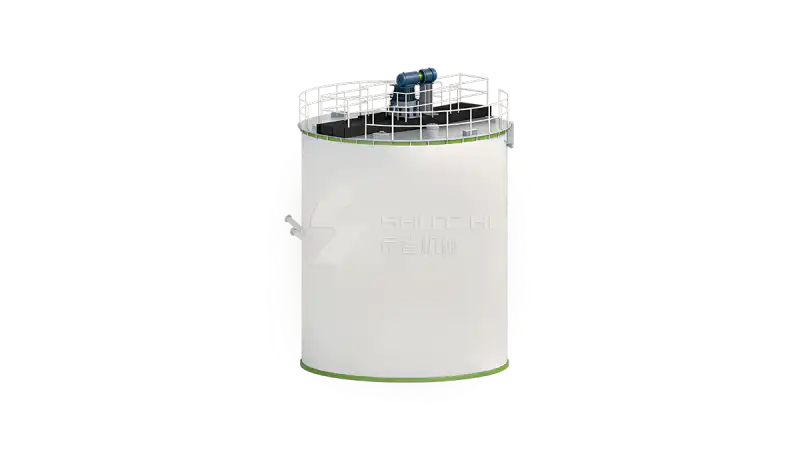

Leaching Agitator Tank
Diameter: 909-3300mm
Power: 2.2-30kW
Capacity: 6-395m³

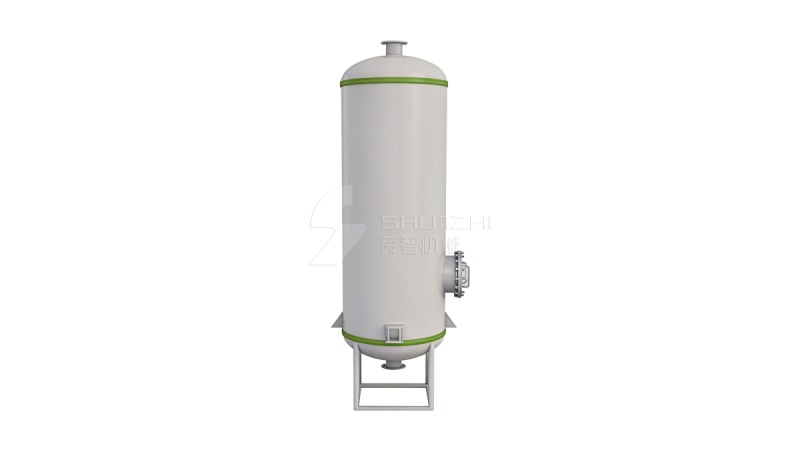

Zinc Powder Displacement Device
Diameter: 140mm
Power: 0.75kW
Capacity: ≤1200m³/d
Washing Equipment

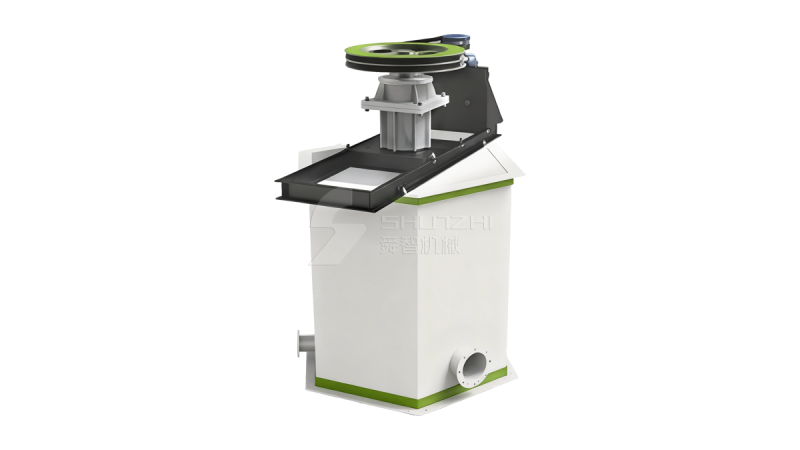

High Efficiency Agitator Washer
Diameter: 750-1000mm
Power: 30-75kW
Capacity: 1.5-4.4m³

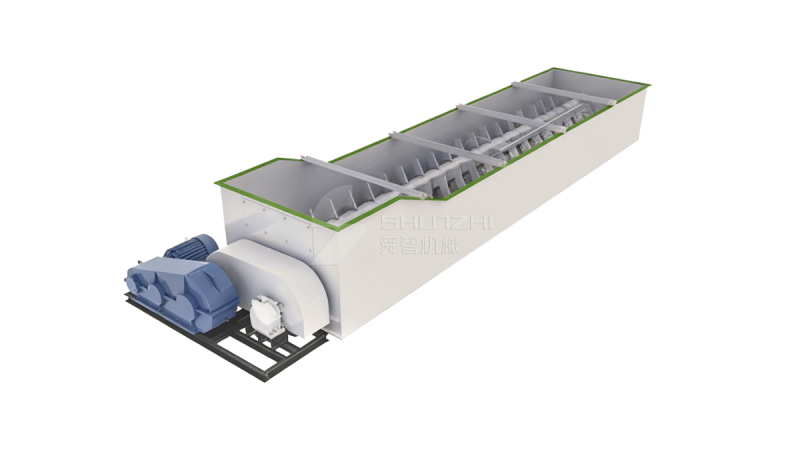

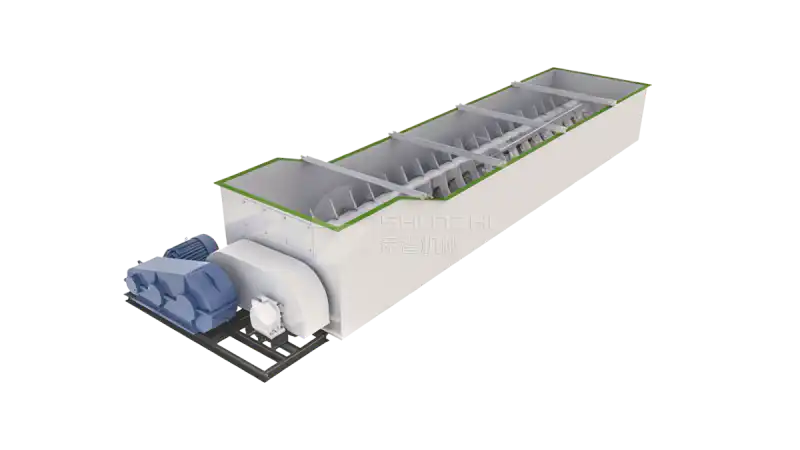

Spiral Chute Washer
Feed Size: 0-75mm
Power: 22-37kW
Capacity: 35-50t/h
Thickening Equipment

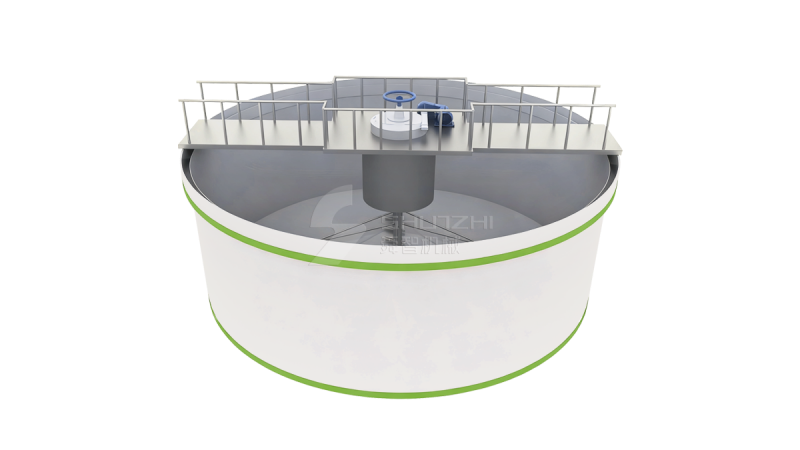

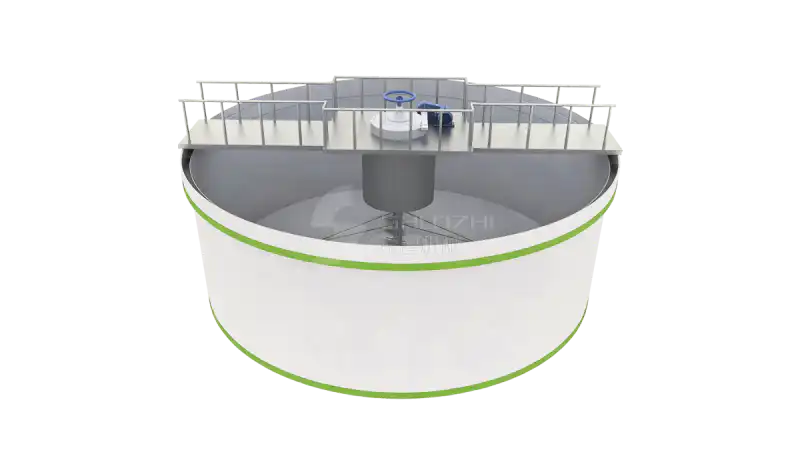

Efficiency Thickener
Diameter: 3600-20000mm
Power: 1.5-7.5kW
Capacity: 5-1400t/d

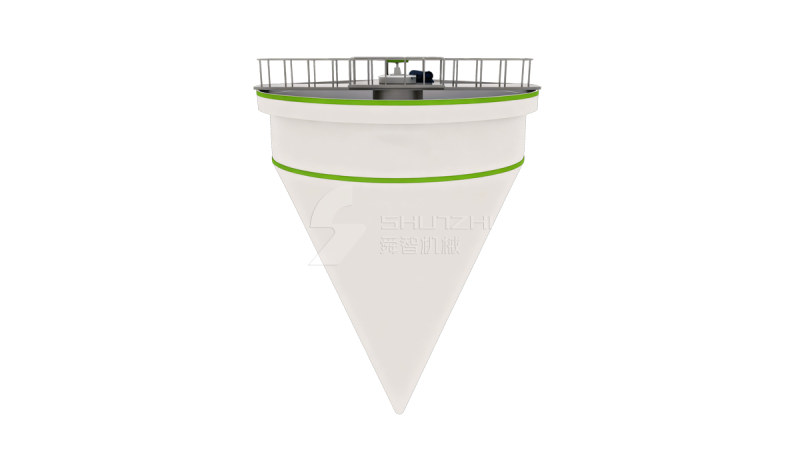

Efficiency Deep Cone Thickener
Diameter: 3000-20000mm
Depth: 4404-22800mm
Capacity: 60-2600m³/h

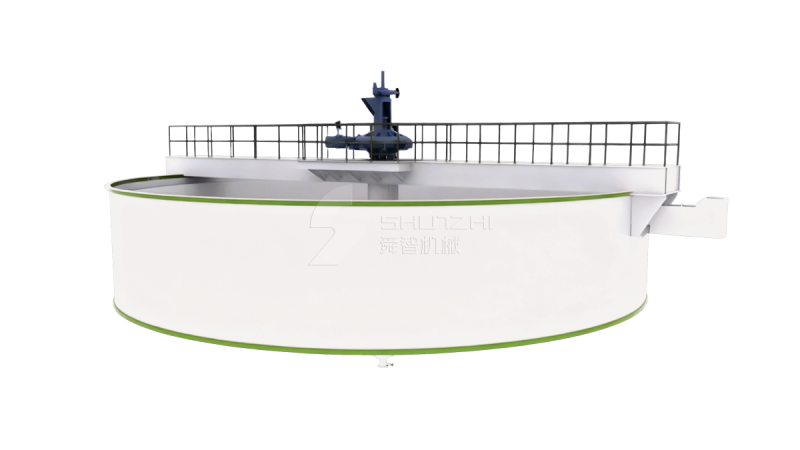

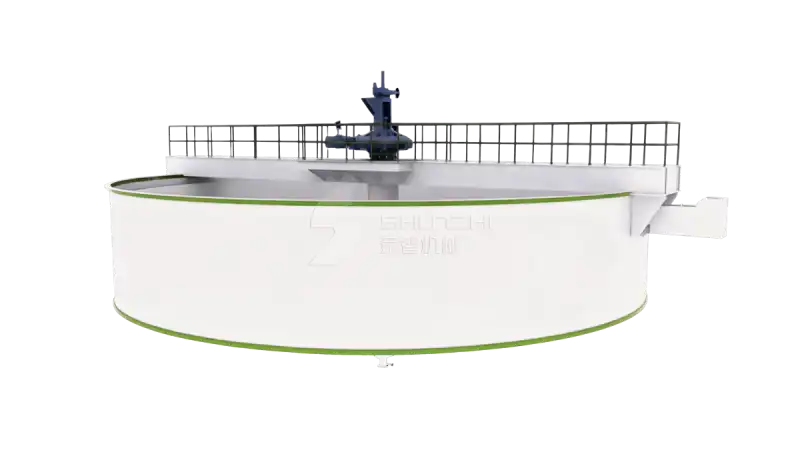

Peripheral Transmission Thickener
Diameter: 15000-53000mm
Power: 5.5-11kW
Capacity: 88-3400t/h
Dewatering Equipment

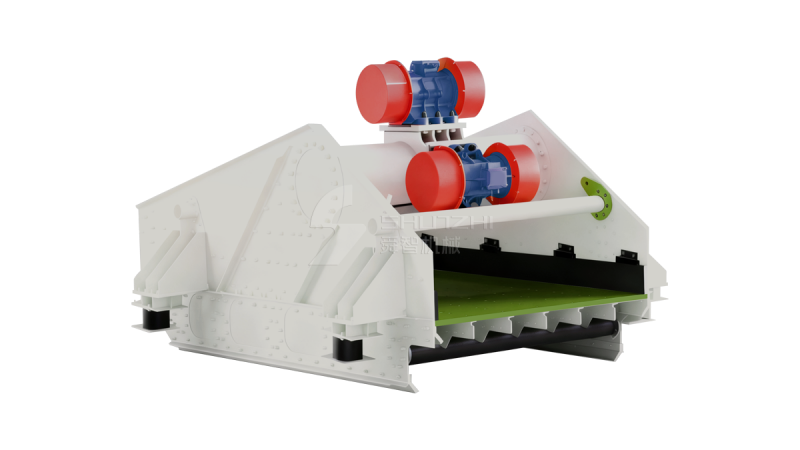

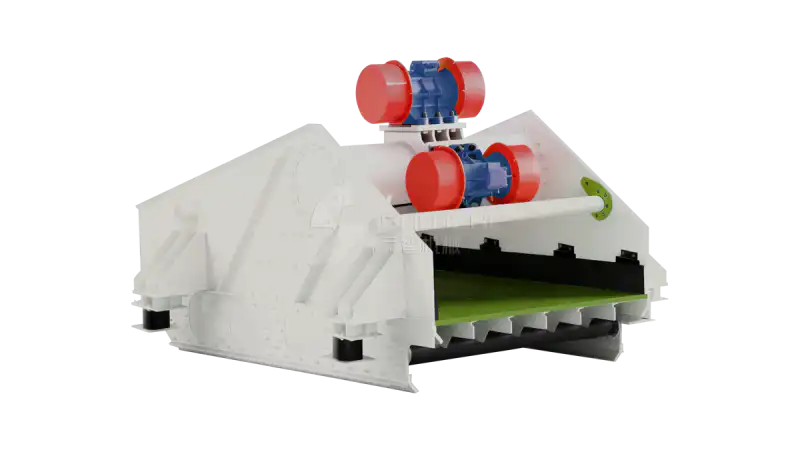

High Frequency Dewatering Screen
Speed: 980-1460r/min
Power: 2-15kW
Capacity: ≤250t/h

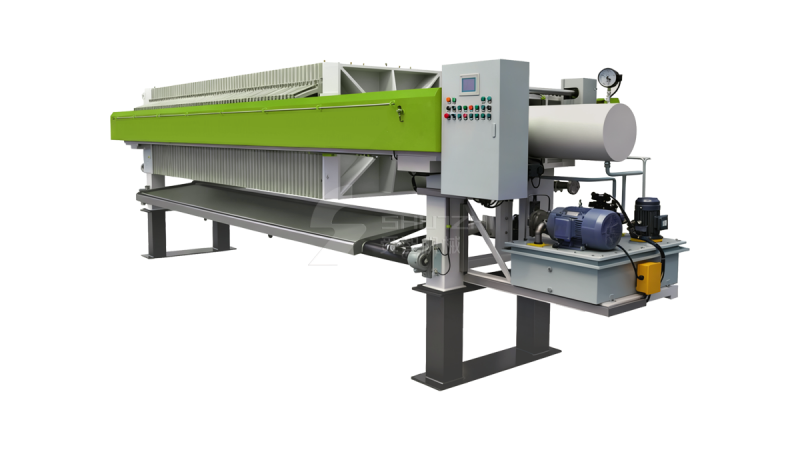

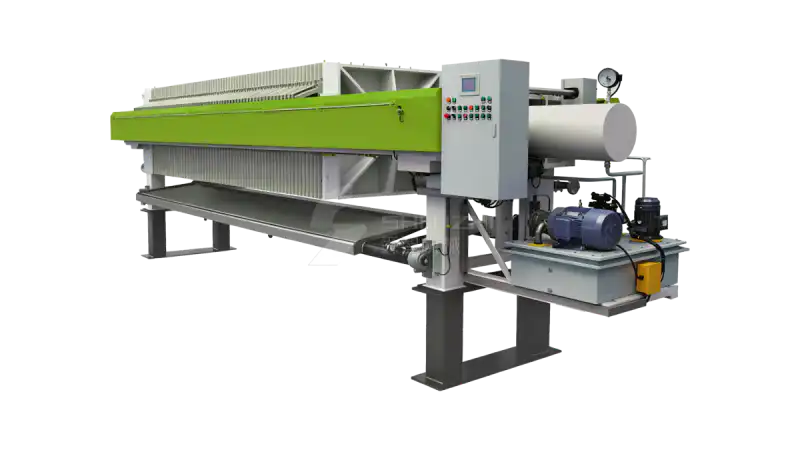

Filter Press
Pressure: 0.5-1.6MPa
Power: 2.2-11kW
Capacity: 20-1000㎡

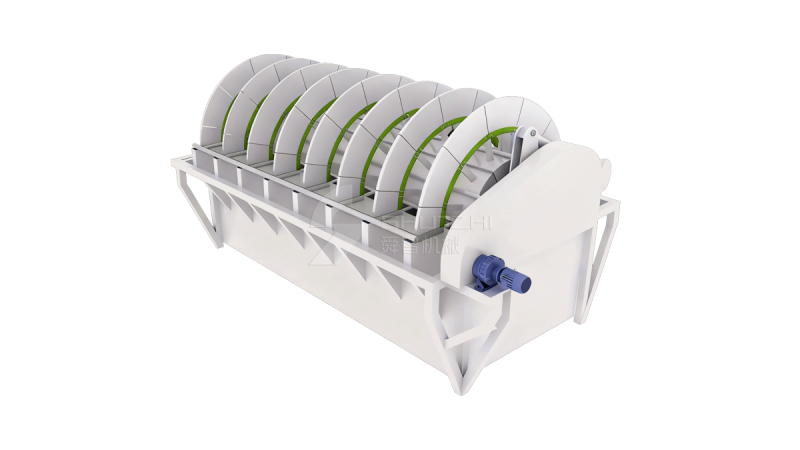

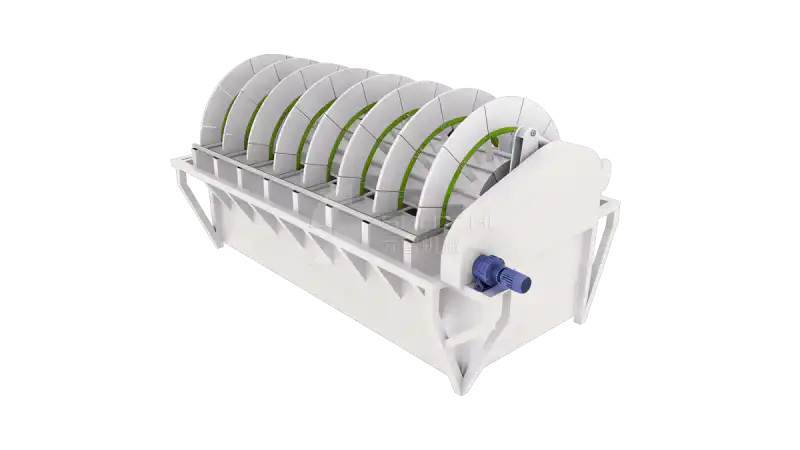

Ceramic Vacuum Filter
Filter Plate: 12-300piece
Power: 3.5-75kW
Capacity: 1-150㎡
