Shunzhi Stone Crusher Plant
With up to 50% large crushing ratio and 32% off operation cost saving, Shunzhi stone crusher plant is widely used in aggregate production, ore crushing and other fields to crush gravel, granite, boulder, limestone, etc.
Our plant is designed with a variety of capacities ranging from 5 to 1000 tons per hour, allowing you to choose the perfect configuration for your particular application.
Stone Crusher Plant For Sale
Large capacity Shunzhi mobile crusher plant – 20TPH, 50TPH, 100TPH, 200TPH, 500TPH In Large Stock!
Feeding Size: 0-300mm
*Note: Can Be Customized.
Capacity: 5-1000t/h
*Note: Can Be Customized.
Applicable Materials:
River pebble, quartz, marble, limestone, basalt, and granite.
Applicable Fields:
Widely used in recycling and reusing coal mines, iron ore, construction demolition waste, and other resources.
More Efficient.
The plants use advanced grinding systems and sensors to optimize their operations and lower energy consumption.
Less Waste.
The stone crusher plant creates very little waste since most materials are recycled into new products or reused in other projects. .
More Safe In Use.
Modern stone crushing plants also come with enhanced safety features that help protect your workers from potential dangers when operating the machines.
More Precise.
The machines used in the process can be programmed to produce materials with accurate measurements and precise textures.

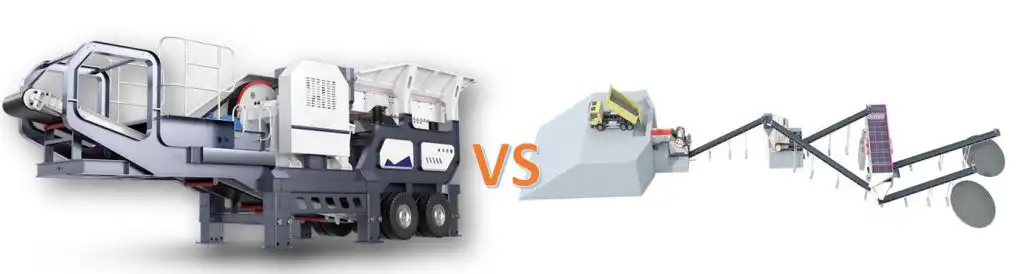

Portable Stone Crusher, Or Stationary Crusher Plant?

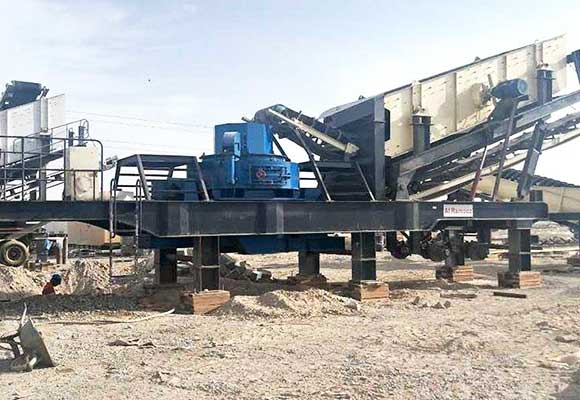

Portable Stone Crushing Plant
It allows for flexibility and ease of use, as the equipment can be moved around to different locations or even relocated entirely if needed.
The portability of mobile stone crushing plants makes them an ideal solution for smaller operations that may not have the space or resources for a larger plant.
More suitable for lower budget, for they costs less than stationary type.
More easily maneuvered over uneven terrain or dirt roads. This makes it ideal for use in quarries or other rugged areas.
Fixed Stone Crushing Plant
Stationary/fixed stone crushing plants are typically larger in size and require more planning for set-up and transport between sites.
They also tend to be more expensive due to their higher capacity, making them better suited for larger operations.
Does not require tires or tracks to move around.
Offers greater consistency in production as the output size and type is predetermined.
Our Advantages
Shunzhi stone crusher plant has a complete after-sales service system for customers, providing customers with technical advice, installation guidance, and maintenance instructions. We are committed to providing our customers with quality products and services. Welcome to visit our company for negotiation.
50% large crushing ratio of our plant is able to produce high-quality aggregate for large-scale construction projects. We also use advanced technology to reduce noise and dust pollution, meeting the standards set by local environmental protection agencies.
50%
CRUSHING RATIO
Our stone crusher plant is designed to produce high-quality and consistent results with minimal manual operation, thanks to our sophisticated control systems, according to our customers, our plants prove to reduce 32% operation costs and labor costs.
-32%
OPERATION COSTS
Our stone crusher plant is widely used for crushing and screening materials in the fields of mining, construction, etc. We provide complete and tailor-made solutions for stone crushing works in huge bulk quantities for nearly any project, no matter small or large ones.
98%
APPLICATIONS
We can say that our stone crusher plant has 99% working performance thanks to our modern technology and the high-quality components that we use to create our machines, which makes our crushing products superior to other competitors.
99%
WORK PERFORMANCE
Shunzhi Stone Crusher Plant Price List
| Types | Price Range |
| 5tph Stone Crushing Plant Price | $6,700 – $7,800 |
| 20tph Stone Crushing Plant Price | $9,500 – $11,000 |
| 50tph Stone Crushing Plant Price | $58,000 – $70,000 |
| 80tph Stone Crushing Plant Price | $65,000 – $76,000 |
| 100tph Stone Crushing Plant Price | $40,000 – $50,000 |
| 150tph Stone Crushing Plant Price | $105,000 – $220,000 |
| 200tph Stone Crushing Plant Price | $250,000 – $230,000 |
| 300tph Stone Crushing Plant Price | $170,000 – $182,000 |
| 600tph Stone Crushing Plant Price | $1,150,000 – $1,30,000 |
| 1000tph Stone Crushing Plant Price | $850,000 – $950,000 |
The stone crushing plant price is determined by the feeding capacity, machine types, and other equipment configurations. The capacity of the plant is a major factor that determines the price. The higher the capacity, the more expensive the cost will be.
The machine types also affect the price of stone crushing plants. Different types of machines used in different stages of the production lines will result in varying costs. Moreover, some other factors such as electricity consumption, labor costs, and other related expenses also play an important role in determining the overall cost of the stone crushing plant.
Additionally, choosing to install additional equipment such as dust removers, screens or conveyors can further increase the total cost.
Therefore, if you want to know the exact price of stone crusher plant, please contact us by clicking the button below, tell us your requirement and we will offer customized solutions and quote for you.
Types of Stone Crushing Plant for Sale
Shunzhi stone crusher plant has high safety standards and is equipped with safety features to protect the workers against any potential hazards. The low noise emissions ensure that the plant can be used in urban areas without causing any disruption. Additionally, it is easy to transport and move around on construction sites.
There are various capacities of stone crusher plants for sale and the plants are highly customisable and can be tailored according to the individual requirements of the customer.
Check Your Needed Stone Production Machines By Clicking the Capacities Below:

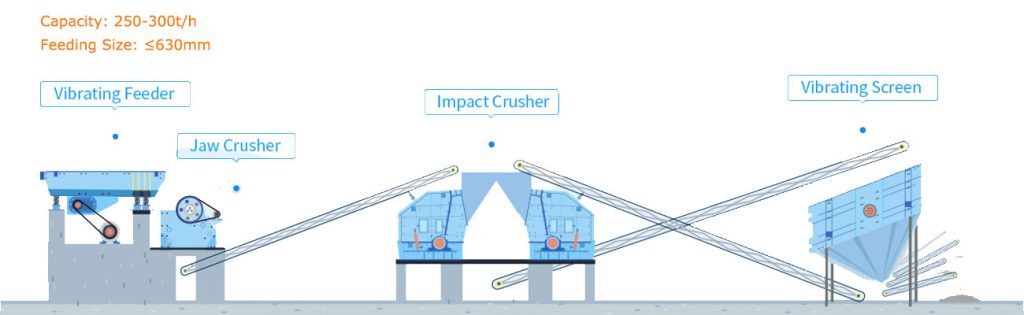

10-20 TPH / 30-50 TPH / 100-120 TPH / 150 TPH / 200 TPH / 250-300 TPH / 500-600 TPH / 1000 TPH

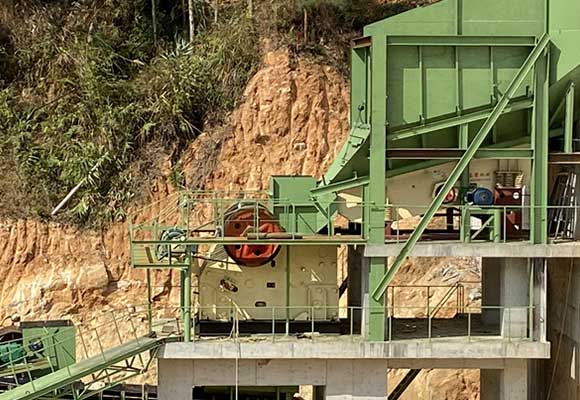

Small (10-20 TPH) Stone Crusher Plant
Capacity: 10 TPH – 20 TPH
Raw Material: Limestone
Estimated Price Range: $6,700 – $7,800
| Raw material hardness | Soft |
| Feeding size | <200mm |
| Type of production line | Stationary Type |
| Floor area | 2700 sq ft |
| Types of finished products | 1 |
| Finished product specifications | 0-24mm |

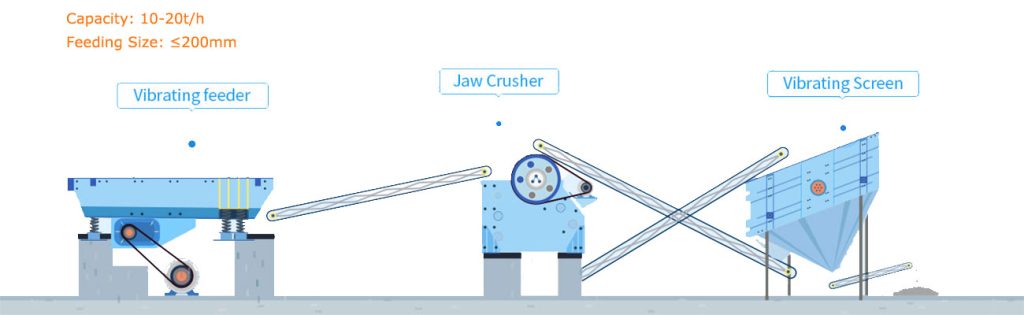

Components of 10-20 TPH Small Stone Crusher Machines
The 10-20 tph small stone crushing plant includes a vibrating feeder, a primary jaw crusher and a vibrating screen.
The small stone crusher plant is often used for medium-sized crushing of ore and bulk materials, such as river pebbles, granite, basalt, iron ore, quartz stone, etc.
If you have a tight budget, a primary jaw crusher machine (PE250*400) is able to reduce the large size of raw materials into manageable sizes.

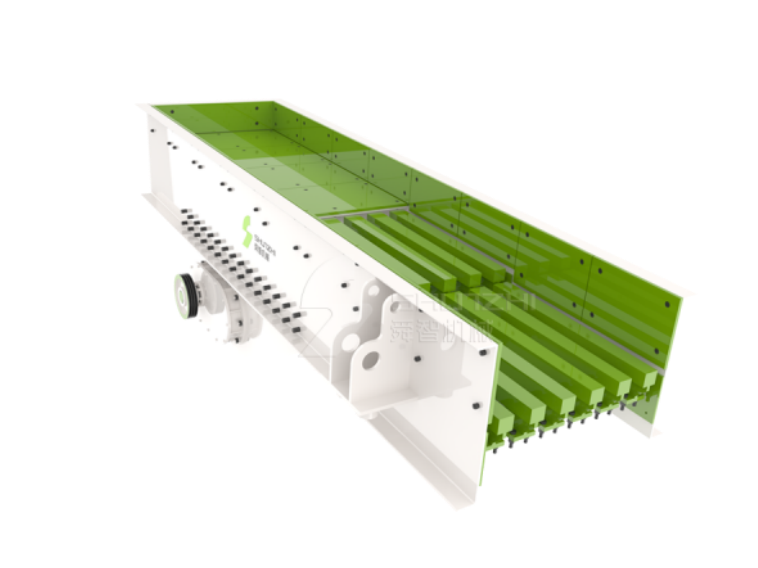

GZD750x2500 Vibrating Feeder
| Model | GZD750x2500 |
| Feeding Chute Size (mm) | 750×2500 |
| Max Feeding Size (mm) | 300 |
| Capacity (t/h) | 50-80 |
| Motor Power (kW) | 3 |
| Weight (kg) | 1590 |
| Overall Dimension (mm) | 2580x1100x1400 |
PE250*400 Jaw Crusher
| Model | PE250*400 |
| Feeding Opening (mm) | 250×400 |
| Max Feeding Size (mm) | 210 |
| Adjusting Rage of Discharge (mm) | 20-60 |
| Motor Power (kW) | 6P 15 |
| Weight (t) | 2.8 |
| Processing Capacity (t/h) | 5-21 |
JC231 Vibrating Screen
| Model | JC231 |
| Feed Opening Size (mm) | 510×800 |
| Discharge Range (mm) | 40-150 |
| Capacity (t/h) | 50-250 |
| Motor Power (kW) | 55-75 |
| Weight (kg) | 9052 |
Parameters of 10-20 TPH Stone Production Line
| Model | Feeding Chute Size(mm) | Max Feeding Size(mm) | Capacity(t/h) | Motor Power(kW) | Weight(kg) | Overall Dimension(mm) |
| GZD750x2500 Vibrating Feeder | 750×2500 | 300 | 50-80 | 3 | 1590 | 2580x1100x1400 |
| PE250x400 Jaw Crusher | 250×400 | 210 | 5-21 | 6P 15 | 280 | / |
| JC231 Vibrating Screen | 510×800 | / | 50-250 | 55-75 | 9052 | / |
30-50 TPH Stone Crusher Plant
Capacity: 30TPH – 50 TPH
Raw Material: Ore
Estimated Price Range: $58,000 – $70,000
| Raw material hardness | Hard |
| Feeding size | โค400mm |
| Type of production line | Stationary Type |
| Floor area | 3500 sq. ft. |
| Types of finished products | 3 |
| Finished product specifications | 0-5, 5-40, 40-70 mm |

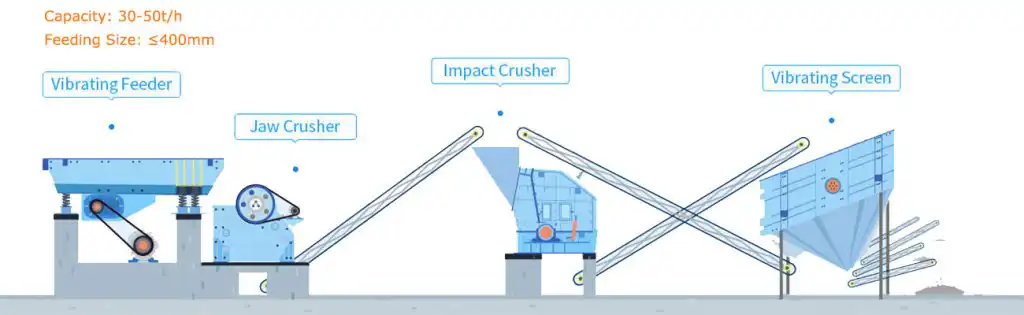

Components of 30-50 TPH Aggregate Crusher Plant
Shunzhi 30-50 tph stone crushing plant includes best price vibrating feeder, a jaw crusher, an impact crusher machine and a vibrating screen.
This plant is suitable for processing hard materials like ore. The primary jaw crusher reduces the material size to be fed into the impact crusher machine. The impact crusher crushes the material with its high-speed rotating hammers, and then the material is sent to the vibrating screen, which separates it into different sizes.
GZD750*2500 Vibrating Feeder
| Model | GZD750x2500 |
| Feeding Chute Size (mm) | 750×2500 |
| Max Feeding Size (mm) | 300 |
| Capacity (t/h) | 50-80 |
| Motor Power (kW) | 3 |
| Weight (kg) | 1590 |
| Overall Dimension (mm) | 2580x1100x1400 |
PE400*600 Jaw Crusher
| Model | PE400*600 |
| Feeding Chute Size (mm) | 400×600 |
| Max Feeding Size (mm) | 340 |
| Capacity (t/h) | 16-64 |
| Motor Power (kW) | 6P 30 |
| Weight (kg) | 1200 |
| Adjusting Range of Discharge (mm) | 40-100 |

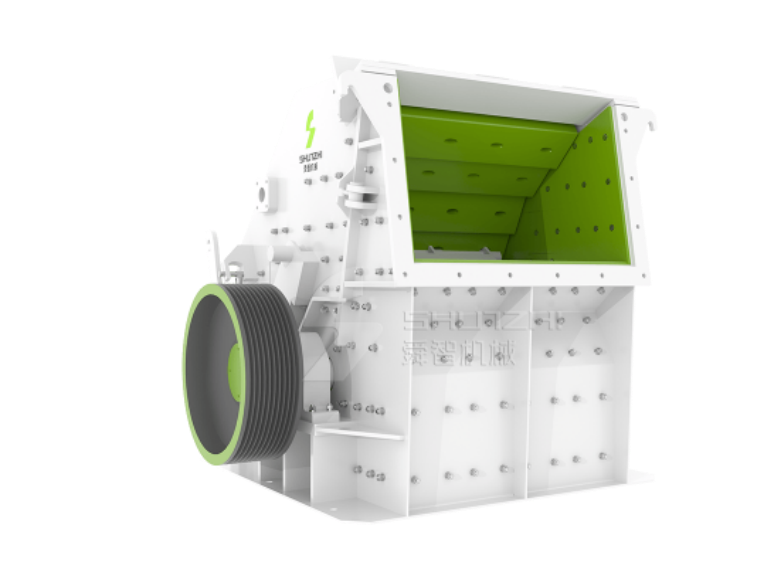

PF1010 Impact Crusher
| Model | PF1010 |
| Feeding Chute Size (mm) | 1000×1050 |
| Max Feeding Size (mm) | 350 |
| Capacity (t/h) | 50-90 |
| Motor Power (kW) | 4P 45-55 |
| Weight (kg) | 1500 |
| Overall Dimension (mm) | 2370x1700x2390 |
JC231 Vibrating Screen
| Model | JC231 |
| Feed Opening Size (mm) | 510×800 |
| Discharge Range (mm) | 40-150 |
| Capacity (t/h) | 50-250 |
| Motor Power (kW) | 55-75 |
| Weight (kg) | 9052 |
Parameters of 30-50 TPH Stone Production Line
| Model | Feeding Chute Size(mm) | Max Feeding Size(mm) | Capacity(t/h) | Motor Power(kW) | Weight(kg) | Overall Dimension(mm) |
| GZD750x2500 Vibrating Feeder | 750×2500 | 300 | 50-80 | 3 | 1590 | 2580x1100x1400 |
| PE400*600 Jaw Crusher | 400×600 | 340 | 16-64 | 6P 30 | 700 | / |
| PF1010 Impact Crusher | 400*1080 | 350 | 50-90 | 4P 45-55 | 1500 | 2370x1700x2390 |
| JC231 Vibrating Screen | 510×800 | / | 50-250 | 55-75 | 9052 | / |
100-120 TPH Stone Crusher Plant
Capacity: 100TPH -120TPH
Raw Material: Limestone
Estimated Price Range: $40,000 – $50,000
| Raw material hardness | Soft |
| Feeding size | โค600mm |
| Type of production line | Stationary Type |
| Floor area | 5000 sq. ft. |
| Types of finished products | 2 |
| Finished product specifications | 0-5, 5-10 mm |

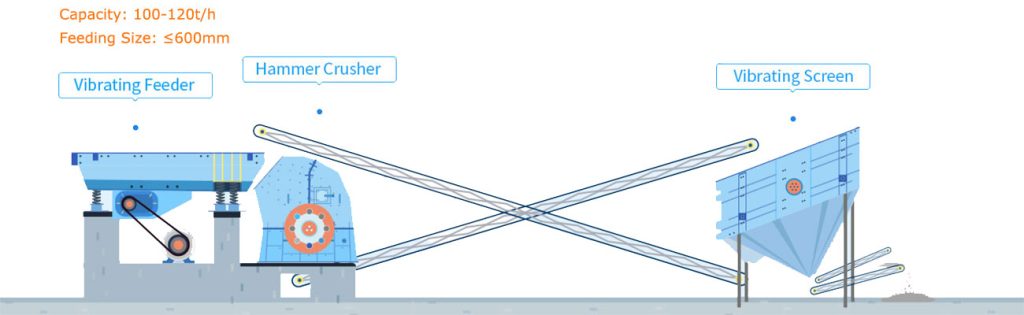

Components of 100-120 TPH Stone Crusher Plant
Shunzhi 100-120 tph stone crushing plant consists of a vibrating feeder, a heavy hammer crusher and a vibrating screen.
After feeding your raw materials, the heavy hammer crusher crushes the material with a powerful combination of hammer and anvil. The crushed materials are then transported to a vibrating screen where they are separated into different sizes of finished materials.
GZD850x3000 Vibrating Feeder
| Model | GZD850x3000 |
| Feeding Chute Size (mm) | 850×3000 |
| Max Feeding Size (mm) | 400 |
| Capacity (t/h) | 80-120 |
| Motor Power (kW) | 7.5 |
| Weight (kg) | 3895 |
| Overall Dimension (mm) | 3110x1800x1600 |

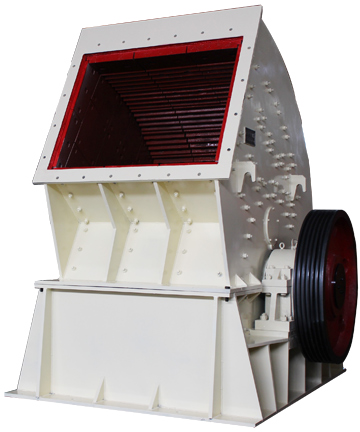

PCZ1308 Heavy Hammer Crusher
| Model | PCZ1308 |
| Feeding Chute Size (mm) | 870×780 |
| Max Feeding Size (mm) | 380 |
| Capacity (t/h) | 60-160 |
| Motor Power (kW) | 132 |
| Rotor Diameter*length (kg) | 1530×790 |
| Overall Dimension (mm) | 2880x2130x2390 |
JC340 Vibrating Screen
| Model | JC340 |
| Feeding Chute Size (mm) | 600×1020 |
| Discharge Range (mm) | 60-175 |
| Capacity (t/h) | 85-300 |
| Motor Power (kW) | 75-90 |
| Weight (kg) | 16460 |
Parameters of 100-120 TPH Stone Production Line
| Model | Feeding Chute Size (mm) | Max Feeding Size (mm) | Capacity (t/h) | Motor Power (kW) | Weight (kg) | Overall Dimension (mm) |
| GZD850x3000 Vibrating Screen | 850×3000 | 400 | 80-120 | 7.5 | 3895 | 3110x1800x1600 |
| PCZ1308 Heavy Hammer Crusher | 870×780 | 380 | 60-160 | 132 | / | 2880x2130x2390 |
| JC340 Vibrating Screen | 600×1020 | / | 85-300 | 75-90 | 16460 | / |

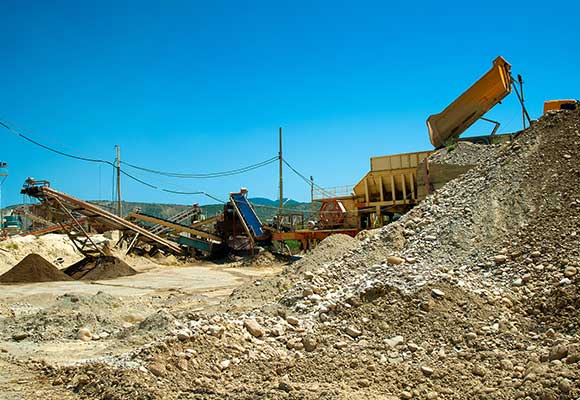

150 TPH Stone Crusher Plant
Capacity: 150 TPH
Raw Material: Granite
Estimated Price Range: $105,000 – $220,000
| Raw material hardness | Hard |
| Feeding size | โค500mm |
| Type of production line | Mobile Type |
| Floor area | 2500 sq. ft. |
| Types of finished products | 3 |
| Finished product specifications | 0-10, 10-20, 20-30 mm |

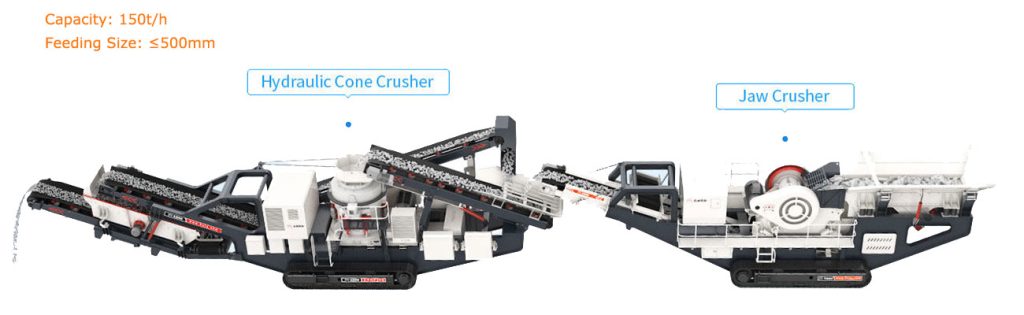

Components of 150 TPH Portable Stone Crusher Plant
Our 150 tph stone crusher plant is mainly mobile type, consisting of a mobile hydraulic cone crusher plant and a mobile jaw crusher plant.
Compared with stationary stone crushing plant, mobile portable crusher plant is flexible enough to use in nearly any complicated working sites and significantly saves working space. Stones will be sent to jaw crusher through feeder, after primary crushing, the material will then be transported to cone crusher.

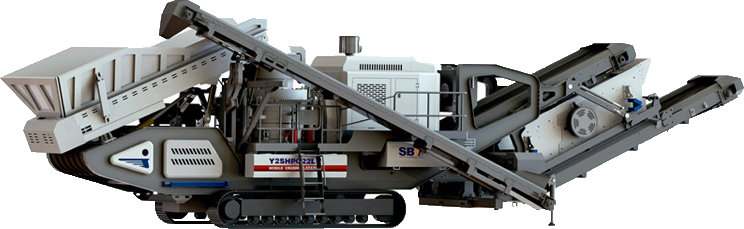

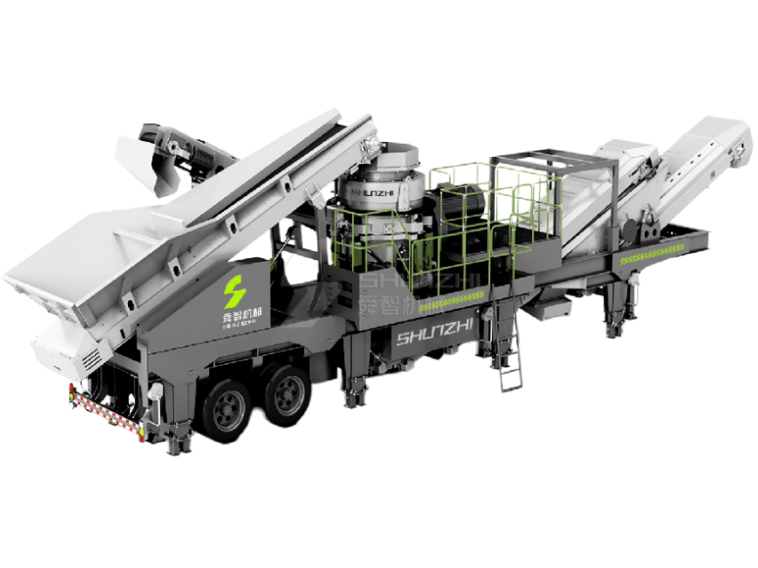

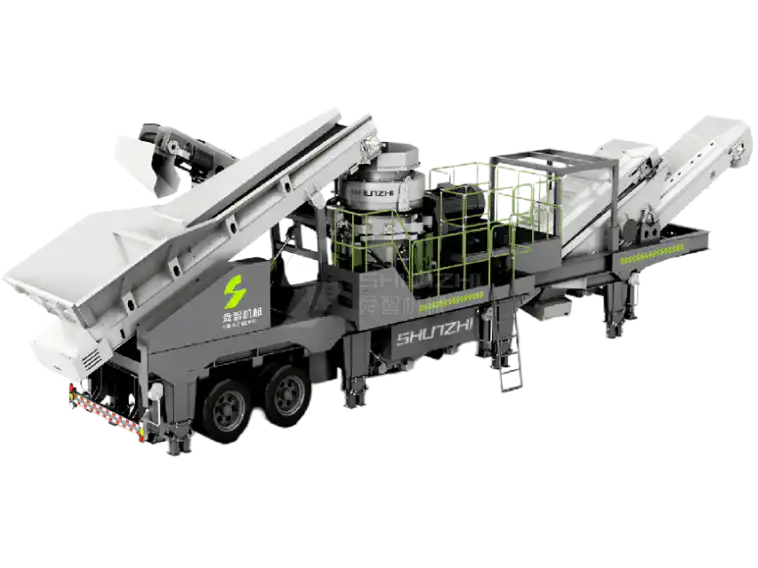

SZYLY200 Mobile Hydraulic Cone Crusher
| Model | SZYLY200 |
| Vibrating Feeder Size (mm) | 1000×5500 |
| Max Feeding Size (mm) | 185 |
| Crusher Feed Inlet (mm) | 210 |
| Powertrain Engine (kW) | 264 |
| Weight (t) | 35/41 |
| Overall Dimension (mm) | 14500/16400×2700/3000×3500 |
SZEL106 Mobile Jaw Crusher
| Model | SZEL106 |
| Vibrating Feeder Wide Length (mm) | 1060×4200 |
| Max Feeding Size (mm) | 560 |
| Side Belt Conveyor Wide Length (mm) | 650×4000 |
| Crusher Feed Inlet (mm) | 1060×700 |
| Weight (kg) | 42,000 |
| Overall Dimension (mm) | 15100x2800x3500 |
Parameters of 150 TPH Stone Production Line
| Model | Maximum Feeding size (mm) | Feeding Height (mm) | Silo Volume (m ยณ) | Vibrating Feeder Size (mm) | Crusher Model | Weight (t) |
| SZYLY200 Mobile Hydraulic Cone Crusher | 185 | 2600 | 5 | 1000×5500 | HPM200 | 35/41 |
| SZEL106 Mobile Jaw Crusher | 560 | 4000 | 6.5 | 1060×4200 | PE750x1060 | 42 |

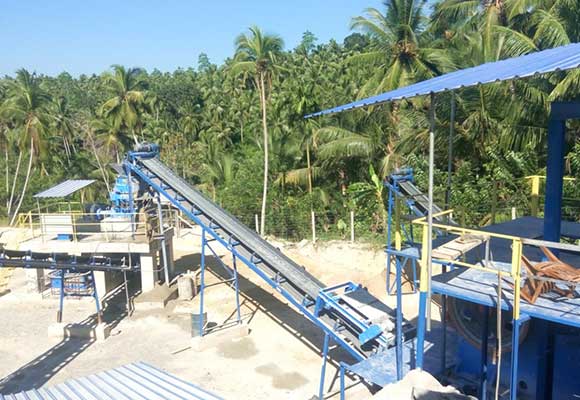

200 TPH Stone Crusher Plant
Capacity: 200 TPH
Raw Material: Granite
Estimated Price Range: $220,000 – $230,000
| Raw material hardness | Hard |
| Feeding size | โค630mm |
| Type of production line | Stationary Type |
| Floor area | 5500 sq. ft. |
| Types of finished products | 4 |
| Finished product specifications | 0-5, 5-10, 10-20, 20-30 mm |

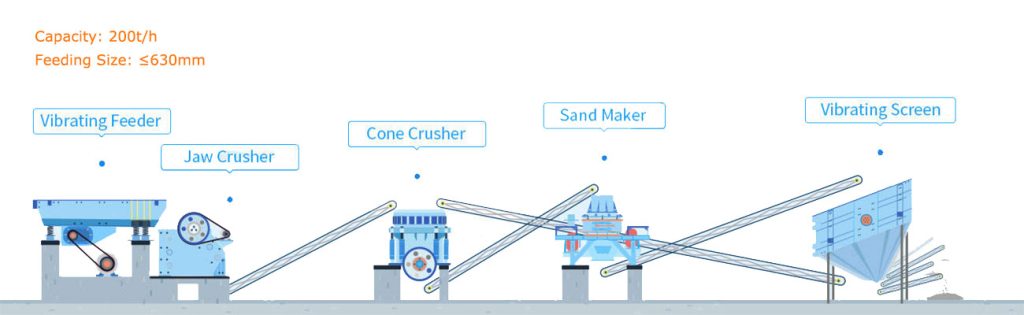

Components of 200 TPH Stone Crusher Plant
Shunzhi 200 tph stone crusher plant consists of vibrating feeder, 200 tph jaw crusher, 200 tph cone crusher, 200 tph vsi crusher machine and a vibrating screen.
Our 200 tph stone crusher plant deals with granite and other hard rocks, those materials are transported to primary crushing process through vibrating feeder, and then breaks into smaller rocks by jaw crusher, then comes the cone crusher, once the rock is crushed small enough, it will then be sent into the vsi sand maker machine. The final crushing process is vibrating screen, fine sand will be produced through the whole crushing line.
GZD960*3800 Vibrating Feeder
| Model | GZD960x3800 |
| Feeding Chute Size (mm) | 960×3800 |
| Max Feeding Size (mm) | 500 |
| Capacity (t/h) | 120-210 |
| Motor Power (kW) | 11 |
| Weight (kg) | 4210 |
| Overall Dimension (mm) | 3850x1950x1630 |
PE750*1060 Jaw Crusher
| Model | PE750*1060 |
| Feeding Chute Size (mm) | 750ร1060 |
| Max Feeding Size (mm) | 630 |
| Capacity (t/h) | 110-320 |
| Motor Power (kW) | 8P 110 |
| Weight (kg) | 29,000 |
| Adjusting Range of Discharge (mm) | 80-140 |

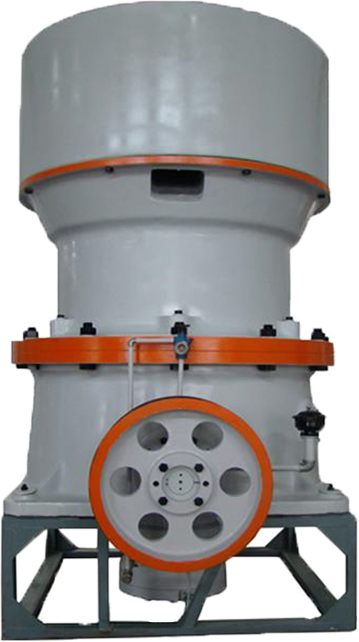

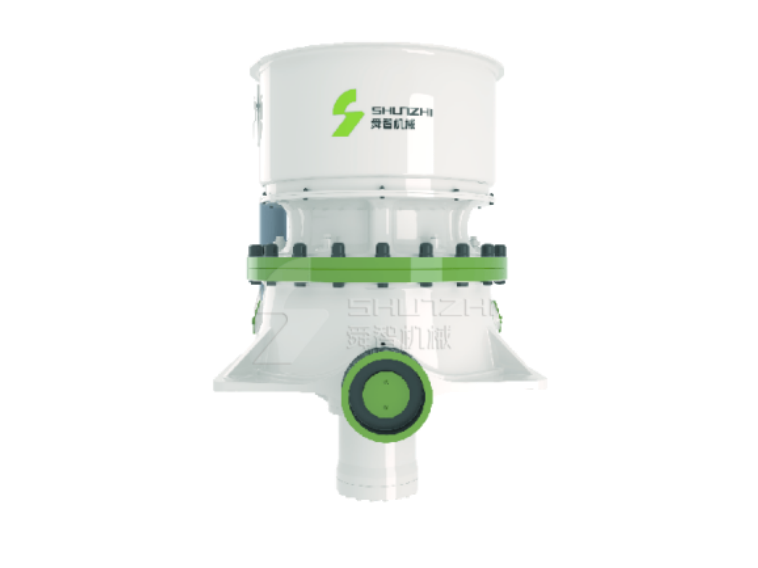

HPM200 Multi Hydraulic Cone Crusher
| Model | HPM200 |
| Feeding Chute Size (mm) | 185, 125, 95, 76, 54 |
| Max Feeding Size (mm) | 145, 100, 75, 60, 45 |
| Capacity (t/h) | 160-250, 145-250, 120-250, 108-210, 81-210 |
| Motor Power (kW) | 160 |
| Feeding Port Size (mm) | 185, 125, 95, 76, 54 |
| Discharge Opening Adjustment Range (mm) | 22, 18, 14, 12, 10 |

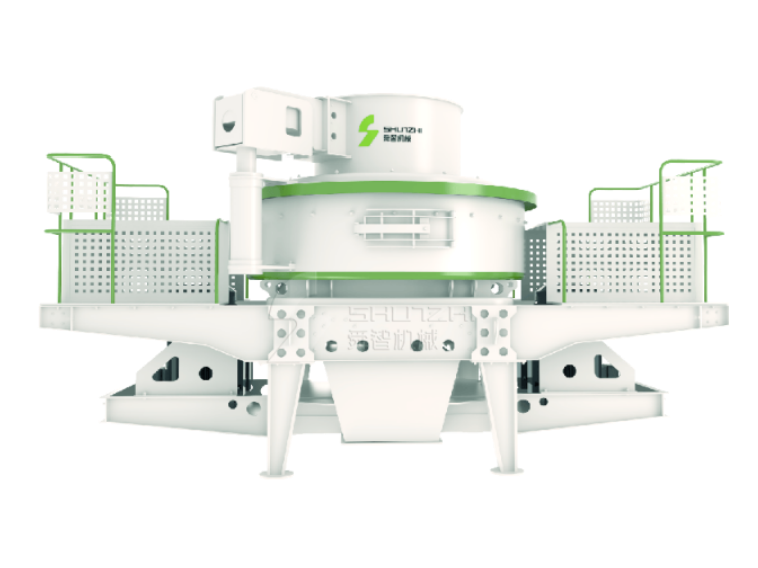

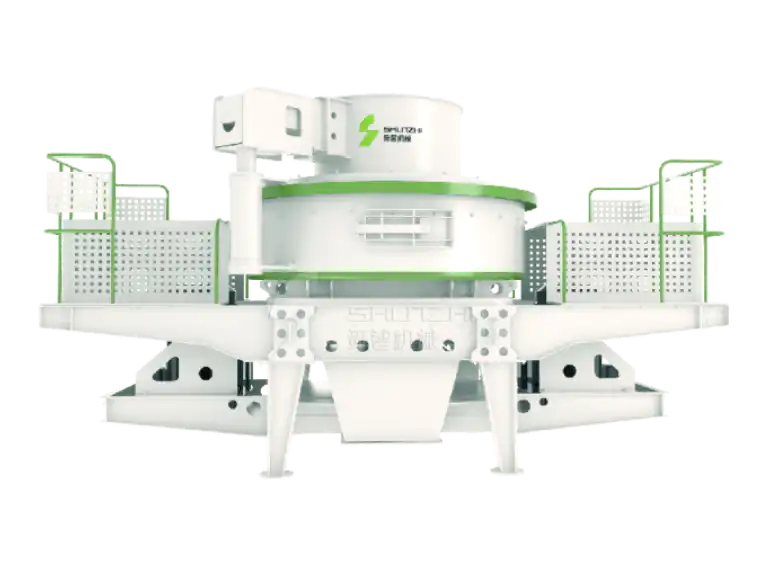

VSI5X7615 Sand Maker
| Model | PE750*1060 |
| Feeding Chute Size (mm) | 150-280, 70-140 |
| Max Feeding Size (mm) | 30, 35 |
| Rotation Speed (r/min) | 1700-1900 |
| Motor Power (kW) | 2ร75 (100) |
| Weight (kg) | 8,600 |
| Overall Dimension (mm) | 4100ร2330ร2300 |
JC440 Vibrating Screen
| Model | JC440 |
| Feed Opening Size (mm) | 760×1020 |
| Discharge Range (mm) | 70-200 |
| Capacity (t/h) | 120-520 |
| Motor Power (kW) | 90-110 |
| Weight (kg) | 27,810 |
Parameters of 200 TPH Stone Production Line
| Model | Feeding Chute Size(mm) | Max Feeding Size(mm) | Capacity(t/h) | Motor Power(kW) | Weight(kg) | Overall Dimension(mm) |
| GZD960*3800 Vibrating Feeder | 960×3800 | 500 | 120-210 | 11 | 14210 | 3850x1950x1630 |
| PE750*1060 Jaw Crusher | 750ร1060 | 630 | 110-320 | 8P 110 | 29,000 | / |
| HPM200 Multi Hydraulic Cone Crusher | 185, 125, 95, 76, 54 | 145, 100, 75, 60, 45 | 160-250, 145-250, 120-250, 108-210, 81-210 | 160 | / | / |
| VSI5X7615 Sand Maker | 150-280, 70-140 | 30, 35 | / | 2ร75 (100) | 8,600 | 4100ร2330ร2300 |
| JC440 Vibrating Screen | 760×1020 | / | 120-520 | 90-110 | 27,810 | / |

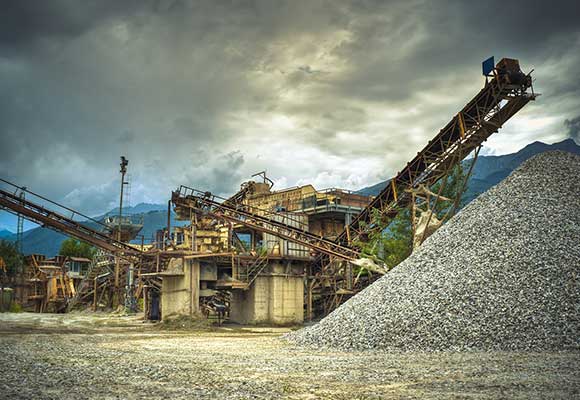

250-300 TPH Stone Crusher Plant
Capacity: 250TPH – 300 TPH
Raw Material: Limestone
Estimated Price Range: $170,000 – $182,000
| Raw material hardness | Soft |
| Feeding size | โค630mm |
| Type of production line | Stationary Type |
| Floor area | 3500 sq. ft. |
| Types of finished products | 3 |
| Finished product specifications | 0-5, 5-40, 40-70 mm |
Components of 250-300 TPH Stone Crusher Plant
For the soft raw material like limestone, Shunzhi 250 tph stone crusher or 300 tph stone crusher plant is your perfect choice. The major machines involved in the whole crushing line include a vibrating feeder, a 300 tph jaw stone crusher, two sets of 250 impact crushers and a vibrating screen.
The primary jaw crusher is set to crush large stones into a middle-sized stones, then the impact crusher breaks the stones into smaller shapes. After the final sand screening, you will get your wanted stone size.
GZD1100*4900 Vibrating Feeder
| Model | GZD1100*4900 |
| Feeding Chute Size (mm) | 1100×4900 |
| Max Feeding Size (mm) | 650 |
| Capacity (t/h) | 220-460 |
| Motor Power (kW) | 15 |
| Weight (kg) | 5500 |
| Overall Dimension (mm) | 5200x2050x1700 |
PE900*1200 Jaw Crusher
| Model | PE900*1200 |
| Feeding Chute Size (mm) | 900ร1200 |
| Max Feeding Size (mm) | 750 |
| Capacity (t/h) | 220-380 |
| Motor Power (kW) | 8P 160 |
| Weight (kg) | 52,000 |
| Adjusting Range of Discharge (mm) | 95-165 |
PF1320 Impact Crusher
| Model | PF1320 |
| Feeding Chute Size (mm) | 993×2000 |
| Max Feeding Size (mm) | 500 |
| Capacity (t/h) | 140-380 |
| Motor Power (kW) | 6P 250 |
| Weight (kg) | 34,000 |
| Overall Dimension (mm) | 3220x3100x3120 |
JC443 Vibrating Screen
| Model | JC443 |
| Feed Opening Size (mm) | 850×1100 |
| Discharge Range (mm) | 80-215 |
| Capacity (t/h) | 170-625 |
| Motor Power (kW) | 110-160 |
| Weight (kg) | 34,722 |
Parameters of 250-300 TPH Stone Production Line
| Model | Feeding Chute Size(mm) | Max Feeding Size(mm) | Capacity(t/h) | Motor Power(kW) | Weight(kg) | Overall Dimension(mm) |
| GZD1100*4900 Vibrating Feeder | 1100×4900 | 650 | 220-460 | 15 | 5500 | 5200x2050x1700 |
| PE900*1200 Jaw Crusher | 900ร1200 | 750 | 220-380 | 8P 160 | 52,000 | / |
| PF1320 Impact Crusher | 993×2000 | 500 | 140-380 | 6P 250 | 34,000 | 3220x3100x3120 |
| JC443 Vibrating Screen | 850×1100 | / | 170-625 | 110-160 | 34,722 | / |

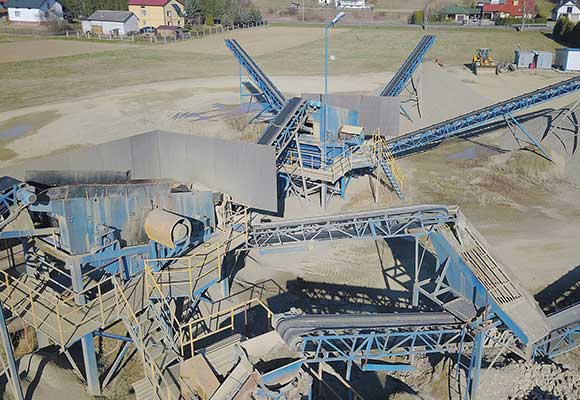

500-600 TPH Stone Crusher Plant
Capacity: 500TPH – 600 TPH
Raw Material: Granite
Estimated Price Range: $58,000 – $70,000
| Raw material hardness | Hard |
| Feeding size | โค1000mm |
| Type of production line | Stationary Type |
| Floor area | 6500 sq. ft. |
| Types of finished products | 4 |
| Finished product specifications | 0-5, 5-10, 10-20, 20-30 mm |

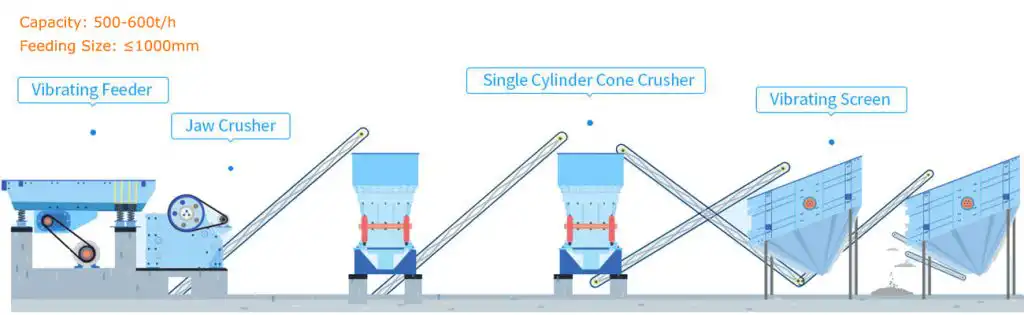

Components of 500-600 TPH Stone Crusher Plant
If you want a stone crusher plant with 500-600 tph capacity, we would equip a vibrating feeder, 500/600 tph jaw crusher, two sets of single cylinder cone crushers, and 4 sets of vibrating screens.
This plant is perfect for crushing hard materials like granite. Through primary crushing and secondary crushing, the crushed stones will be sent to vibrating screen for screening. Our machines are all in delicate design to guarantee efficient working performance and quality output.
GZD1500*6000 Vibrating Feeder
| Model | GZD1500*6000 |
| Feeding Chute Size (mm) | 1500×6000 |
| Max Feeding Size (mm) | 950 |
| Capacity (t/h) | 500-850 |
| Motor Power (kW) | 30 |
| Weight (kg) | 9970 |
| Overall Dimension (mm) | 6160x2918x2292 |
PE1200*1500 Jaw Crusher
| Model | PE1200*1500 |
| Feeding Chute Size (mm) | 1200ร1500 |
| Max Feeding Size (mm) | 1020 |
| Capacity (t/h) | 400-800 |
| Motor Power (kW) | 6P 160-240 |
| Weight (kg) | 100,900 |
| Adjusting Range of Discharge (mm) | 40-100 |
SC315 Single Cylinder Cone Crusher
| Model | SC315 |
| Feeding Chute Size (mm) | 275, 215, 175, 85 |
| Max Feeding Size (mm) | 220, 170, 170, 70 |
| Capacity (t/h) | 177-662, 209-643, 162-552, 175-325 |
| Motor Power (kW) | 315 |
| Minimum Discharge Opening Size (mm) | 32, 29, 29, 19 |
| Cavity Type | F1, F2, F3, F4 |
JC663 Vibrating Screen
| Model | JC663 |
| Feed Opening Size (mm) | 1200×1600 |
| Discharge Range (mm) | 150-350 |
| Capacity (t/h) | 500-1450 |
| Motor Power (kW) | 220-250 |
| Weight (kg) | 90,789 |
Parameters of 500-600 TPH Stone Production Line
| Model | Feeding Chute Size(mm) | Max Feeding Size(mm) | Capacity(t/h) | Motor Power(kW) | Weight(kg) | Overall Dimension(mm) |
| GZD1500*6000 Vibrating Feeder | 1500×6000 | 950 | 500-850 | 30 | 9970 | 6160x2918x2292 |
| PE1200*1500 Jaw Crusher | 1200ร1500 | 1020 | 400-800 | 6P 160-240 | 100,900 | / |
| SC315 Single Cylinder Cone Crusher | 275, 215, 175, 85 | 220, 170, 170, 70 | 177-662, 209-643, 162-552, 175-325 | 315 | / | / |
| JC663 Vibrating Screen | 1200×1600 | / | 500-1450 | 220-250 | 90,789 | / |
1000 TPH Stone Crusher Plant
Capacity: 1000 TPH
Raw Material: Bluestone
Estimated Price Range: $850,000 – $950,000
| Raw material hardness | Soft |
| Feeding size | โค800mm |
| Type of production line | Stationary Type |
| Floor area | 110,000 sq. ft. |
| Types of finished products | 4 |
| Finished product specifications | 0-5, 5-10, 10-20, 20-30 mm |

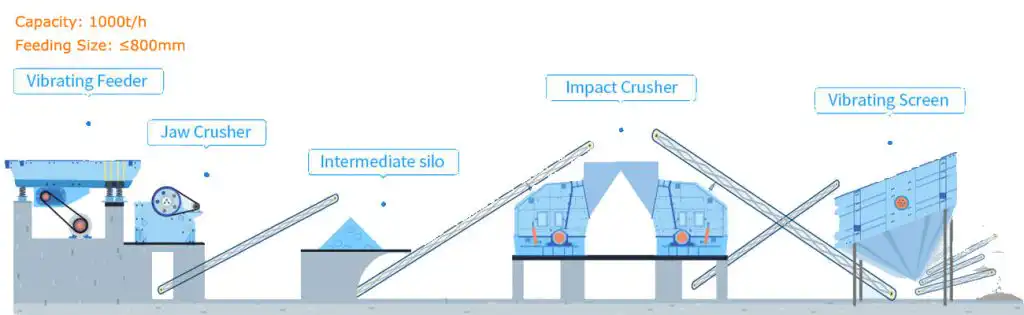

Components of 1000 TPH Stone Crusher Plant
Shunzhi 1000 tph stone crusher plant is normally a customized crushing line, the normal crushing plant machines include a vibrating feeder, a 1000 tph jaw crusher, an intermediate silo, two sets of impact crusher and a set of vibrating screen.
This plant is suitable for processing super hard materials like bluestone. The price of 1000 tph stone crusher plant is determined by machine models, and if you want a 1000 tph stone crusher plant, please contact us and tell us all your requirements, we will give detailed solutions based on your needs.
GZD1500*6000 Vibrating Feeder
| Model | GZD1500*6000 |
| Feeding Chute Size (mm) | 1500×6000 |
| Max Feeding Size (mm) | 950 |
| Capacity (t/h) | 500-850 |
| Motor Power (kW) | 30 |
| Weight (kg) | 9970 |
| Overall Dimension (mm) | 6160x2918x2292 |
PE1500*1800 Jaw Crusher
| Model | PE1500*1800 |
| Feeding Chute Size (mm) | 1500ร1800 |
| Max Feeding Size (mm) | 1200 |
| Capacity (t/h) | 500-1000 |
| Motor Power (kW) | 8P 335 |
| Weight (kg) | 139,000 |
| Adjusting Range of Discharge (mm) | 220-350 |
PF1820 Impact Crusher
| Model | PF1820 |
| Feeding Chute Size (mm) | 1260×2040 |
| Max Feeding Size (mm) | 800 |
| Capacity (t/h) | 400-800 |
| Motor Power (kW) | 4P 630-710 |
| Weight (kg) | 83,200 |
| Overall Dimension (mm) | 4400x3866x4009 |
JC983 Vibrating Screen
| Model | JC983 |
| Feed Opening Size (mm) | 1800×2100 |
| Discharge Range (mm) | 175-350 |
| Capacity (t/h) | 700-2100 |
| Motor Power (kW) | 355-450 |
| Weight (kg) | 180,000 |
Parameters of 1000 TPH Stone Production Line
| Model | Feeding Chute Size(mm) | Max Feeding Size(mm) | Capacity(t/h) | Motor Power(kW) | Weight(kg) | Overall Dimension(mm) |
| GZD1500*6000 Vibrating Feeder | 1500×6000 | 950 | 500-850 | 30 | 9970 | 6160x2918x2292 |
| PE1500*1800 Jaw Crusher | 1500ร1800 | 1200 | 500-1000 | 8P 335 | 139,000 | / |
| PF1820 Impact Crusher | 1260×2040 | 800 | 400-800 | 4P 630-710 | 83,200 | 4400x3866x4009 |
| JC983 Vibrating Screen | 1800×2100 | / | 700-2100 | 355-450 | 180,000 | / |
Global Cases
20tph Mini Stone Crusher Works in Pakistan
The customer said the aggregate crusher plant of Shunzhi company is very efficient. He was very satisfied with the product quality and service they provided. He also said the 20tph jaw stone crusher works perfectly in processing the limestone in his projects.

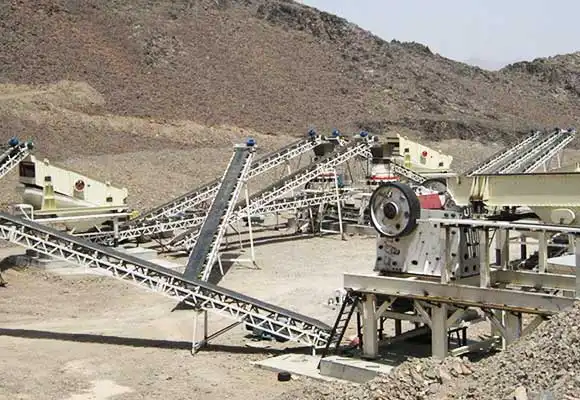

50tph Small Limestone Stone Crusher Plant Sent to Indonesia
Our customer from Indonesia said that the maintenance and installation are easy to understand, and all the staffs were helpful in providing a suitable solution for his needs. Customers also praised how quickly their orders were processed, and the low cost of spare parts.
100tph Mobile Stone Crusher Plant Sent to Kenya
Recently, our 100tph mobile stone crusher plant was shipped to Kenya. This portable crushing station consists of vibrating feeder, jaw crusher, cone crusher and vibrating screen with a capacity of 100t/h. “The machine is highly movable and flexible.” The customer said.
150tph Quartz Stone Crushing Plant Works in the Philippines
“The 150tph stone crushing plant we got from Shunzhi Machinery is working great in the Philippines. It has helped us increase our productivity and efficiency, enabling us to process large amounts of quartz stone for use in construction projects around the country.” Said our customer.
200tph Granite Stone Crusher Machines Works in Uganda
“We ordered 200 tph stone crusher machines from Shunzhi Machinery and their machines work perfectly in our quarry. The machines are highly efficient and produce good quality granite aggregate. The operators of the machines are also very skilled and they can operate them easily without any problem.”
250tph Stone Crush Plant Sent to Egypt
“The capacity of this stone crushing plant is 250 tons per hour, which means that we can process one thousand tons of raw materials every day. We are really glad that we chose Shunzhi Machinery because they helped us save a lot of time and money with their professional service and high-quality machines.”

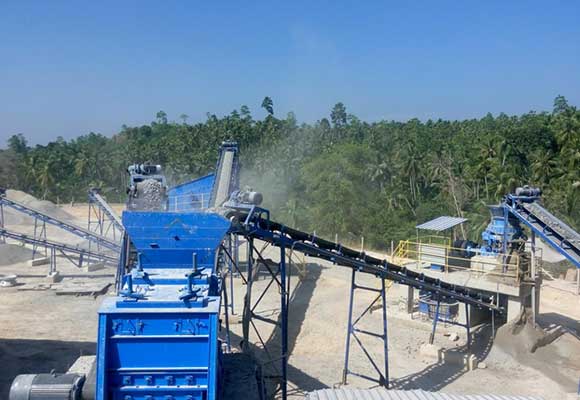

300tph Stone Crushing Plant Sent to Mexico
“We are highly satisfied with this purchase and we would definitely recommend Shunzhi Machinery to anyone who is looking for a reliable stone crushing plant manufacturer.” After got the 300tph stone crushing plant, the customer from Mexico told us so. And we are glad our machines help them a lot.

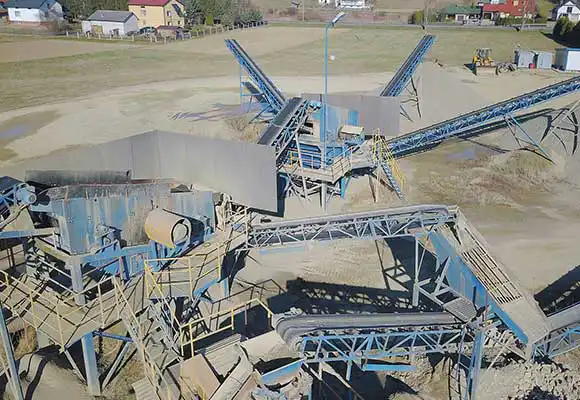

500tph Stone Crusher Plant Works in Morocco
“It is really hard to order a 500tph stone crusher plant from a small supplier, so we ask Shunzhi if they can make 500tph stone crusher and send to Morocco, they patiently asked any detail of our requirements and gave us tailor-made solutions. We were so glad that we have the chance to cooperate with such a responsive company.”
Working Process of Stone Crushing Plant
01
Primary crushing.
Firstly, the raw materials are sent to the jaw crusher for primary crushing. The finished products of this stage will be transported to the next process by belt conveyor.
02
Secondary crushing.
The materials will be crushed in a secondary crushing process such as an impact crusher or cone crusher. This step is followed by a screening process to separate the crushed materials into various sizes.
03
Sand washing.
The qualified material will be sent to a final product process such as sand making or washing plant for further processing. After this step, the end products are ready for usage and sale.
04
Transporting.
The last stage is to collect and transfer all the processed stone materials to the final destination. The transportation of raw materials and finished products may be carried out by truck, ship, train, or other suitable means.
The process can be adjusted according to the requirements of different customers and specific projects. In addition, some stone aggregate crushing plants are equipped with dust removal facilities to reduce environmental pollution.
These are the general steps involved in the stone crushing process. The specific details may depend on the project and local regulations. Tell us your requirement and we will offer tailor-made solutions based on your needs.
How to Choose An Optimal Stone Crusher for Aggregate and Quarry Processing?
The selection of stone aggregate crusher machines in the whole crushing process is determined by two major aspects, one is your crushing demand, and the other is sorting machines in various processes. The following is a brief introduction to the selection of a stone crusher.
1. Consider Your Crushing Demand: First, you should consider your crushing demand and decide the size range of stones that need to be crushed. For example, if you are going to use the stone crusher for crushing limestone, you need to consider how much material you want to crush per hour and determine the size of the input and output material.
Apart from crushing materials, the maximum feeding size, finished particle size, handling capacity, and crushing environment are also vital factors you need to consider before selecting.
You should also put the humidity and hardness of materials into consideration, generally, the jaw crusher and cone crusher are perfect for crushing granite, while the impact crusher is more suitable for crushing limestone. And for river pebble texture, the roll crusher works more brilliantly.
2. Sort Machines in Various Processes: After the selection of the crushing demand, you need to sort out the machines for different processes. Generally speaking, there are mainly two kinds of crushers: primary crushers and secondary crushers. The primary crushing process typically includes a jaw crusher or impact crusher and is used for breaking down large pieces of material into smaller pieces. The secondary crushing process typically involves a cone crusher and is used for shaping the material into its final form.
On the other hand, if you are using portable and compact mobile stone crushers, you need to consider transportability, power requirement, operation cost, etc., which decide whether it is suitable for your project or not.
In a nutshell, selecting an optimal stone crusher is highly dependent on specific circumstances, so you need to consider the above factors before making a final decision. It’s important to select the right machine in order to get maximum performance and efficiency from your crushing process. If you have any questions about that, contact us and we will give customized solutions any time you need them.
How to Maximize the Stone Crusher Plant Efficiency and Longevity?
Three factors affect the efficiency and longevity of stone crusher plants, including material size, feeding material type, and maintenance.
1. Material size: The particle size of the material to be crushed is important in determining the output and efficiency of the crusher plant. If the material is too large, it will take a longer time for crushing and reduce the efficiency of the processing; if the material is too small, on the contrary, it will also cause difficulties in the crushing process, resulting in a decrease in production efficiency.
2. Feeding material type: Different types of feed materials require different types of stone crusher plants for efficient working and maximum output. Generally, softer materials such as sandstone, mudstone, limestone, etc., need smaller jaw crushers; while harder materials such as granite or basalt may require larger jaw crushers or hammer crushers.
3. Maintenance: Regular maintenance of the stone crusher plant is necessary to keep it in top working condition, and will help to ensure that it works properly for longer periods of time. This includes regularly checking for wear on components such as bearings, belts, and pulleys; lubricating moving parts; replacing worn parts as needed, and inspecting the equipment for any signs of damage. It is also important to regularly clean the stone crusher plant, to remove dust, dirt, and other debris that can block or reduce its efficiency. Taking these steps will help you maximize the efficiency and longevity of your stone crusher plant.
These are some of the essential steps that need to be taken in order to maximize the efficiency and longevity of a stone crusher plant. Following these steps will help ensure the smooth running and prolonged life of your stone crusher plant.
What Do Customers Talk About Us?
We bought stone crusher plant from Shunzhi last year and we are very satisfied with their services. They delivered the machine in a timely manner and provided us with detailed technical guidance on how to install and use it. We would definitely recommend Shunzhi to anyone looking for a reliable supplier of stone crusher plant.
โ Salbatore Segundo Daplas Ramรญrez
Shunzhiโs customer service team is also very helpful and responsive, always answering our queries promptly and helping us out whenever we faced any issues with the machine. They even sent their engineers to help us set up the stone crusher plant for optimal performance. We are very grateful for all their help and support.
โ Mekhi Ernesto Datu-imam Montano
Frequently Asked Questions
Featured Products
Shunzhi Impact Crusher
Shunzhi impact crusher is crushing equipment that uses impact energy to crush materials. When the materials enter the action area of the blow bar, they are crushed by the high-speed impact of the blow bar…
Shunzhi Cone Crusher
Shunzhi cone crusher is used for medium crushing and fine crushing of various ores and rocks with compressive strength below 300 MPa. Shunzhi cone crusher adopts the principle of lamination and crushing…
Shunzhi Hammer Crusher
Shunzhi hammer crusher is suitable for crushing hard and medium hard materials in many industrial departments such as cement, chemistry, power station and metallurgy. The working principle is…
English
Spanish
Russian
